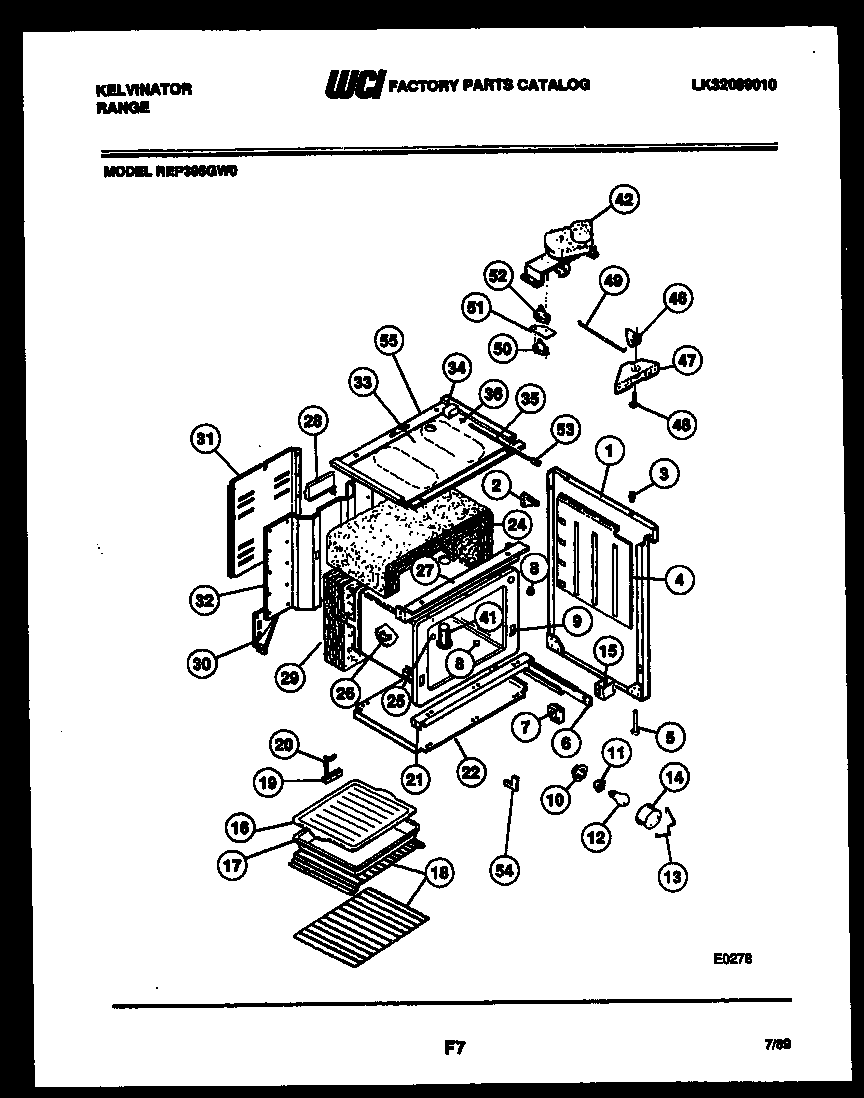

REP305GW0 06 – BODY PARTS

Products

Position	Product
*98744	ANTI-TIP KIT, (NON-ILLUSTRATED)
1A	WCI 08012528
1	WCI 08012527
2	GUSSET - BKGRD (2)
3	BUMPER-COOKTOP (4)
4	RETAINER, INSULATION (2)
5	LEG, LEVELLER (4)
6	WCI 08015746
6A	RAIL, DRAWER LH
7	GUIDE-DRAWER FRNT (2)
8	WCI 3051784
9	OVEN LINER
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	WCI 3051515
14	5304524341 Frigidaire Lens
15	SPACER, DRAWER RAIL (2)
16	WCI 3205234
17	WCI 3205232
18A	RACK-OFFSET
18	316067902 Frigidaire Oven Rack
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 3051696
21	CHANNEL - OVEN SUPPORT LOWER
22	WCI 3203574
25	PLUG BUTTON - THERMO BULB HOLE
26	BRACKET-THERMO BULB (2)
27	WCI K1325636
28	WCI 3051634
29	INSULATION-OVEN BACK
30	WCI 3017481
30A	WCI 3017482
31	COVER - WIRE
32	WCI 3017535
33	WCI 08012542
33A	WASHER-PADDED (3) (NON-ILLUSTRATED)
34	WCI 3051644
35	WCI 0807445
36	WCI 08007444
41	TUBE-OVEN VENT
42	MOTOR-LATCH
46	WCI 3202387
47	HOUSING-DOOR LATCH
48	WCI 08012004
49	WCI 3051649
50	WCI 3051740
51	WCI 3051861
52	WCI K1167190
53	WCI 3011924
54	WCI 3051810
55	WCI 3017633
