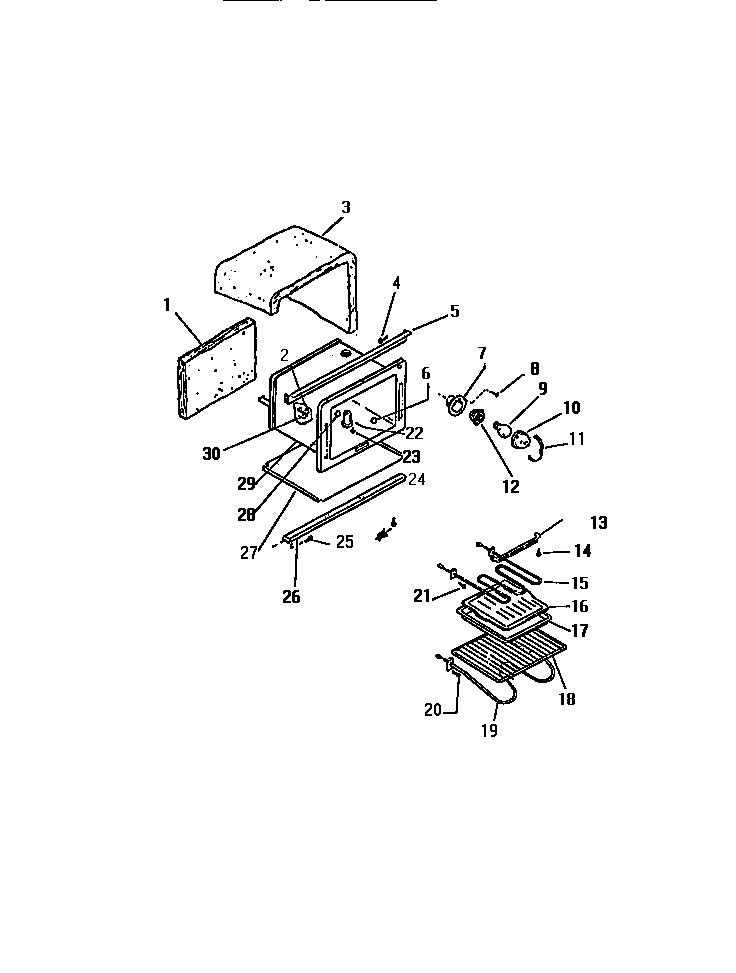

REP306CD1 05 – OVEN CAVITY

REP306CD1 05 – OVEN CAVITY

Written by

in

REP306CD1 05 – OVEN CAVITY

Products

PositionProduct
1INSULATION-OVEN BACK
3WCI K1311331
5WCI K1325636
6PLUG-BUTTON 3/4“
7CUP, OVEN LT
9316538904 Frigidaire Oven Lamp Light
105304524341 Frigidaire Lens
11RETAINING WIRE
12316116400 Frigidaire Oven Light Socket
13HANGER
155303051516 Frigidaire Broil Element
16GRILLE, BROILER
175304442087 Frigidaire Range Wall Oven Broil Pan and Insert
18AWCI K5133501
18RACK (2)
195303051519 Frigidaire Oven 2600W Bake Element
2108002868 Frigidaire 0 Screw Assembly
22VENT TUBE
23SCREW
26CHANNEL, OV. SUPT.
27WCI K5276502
28WCI KGM142017
29WCI K1325538
30BRACKET THERM. BULB
