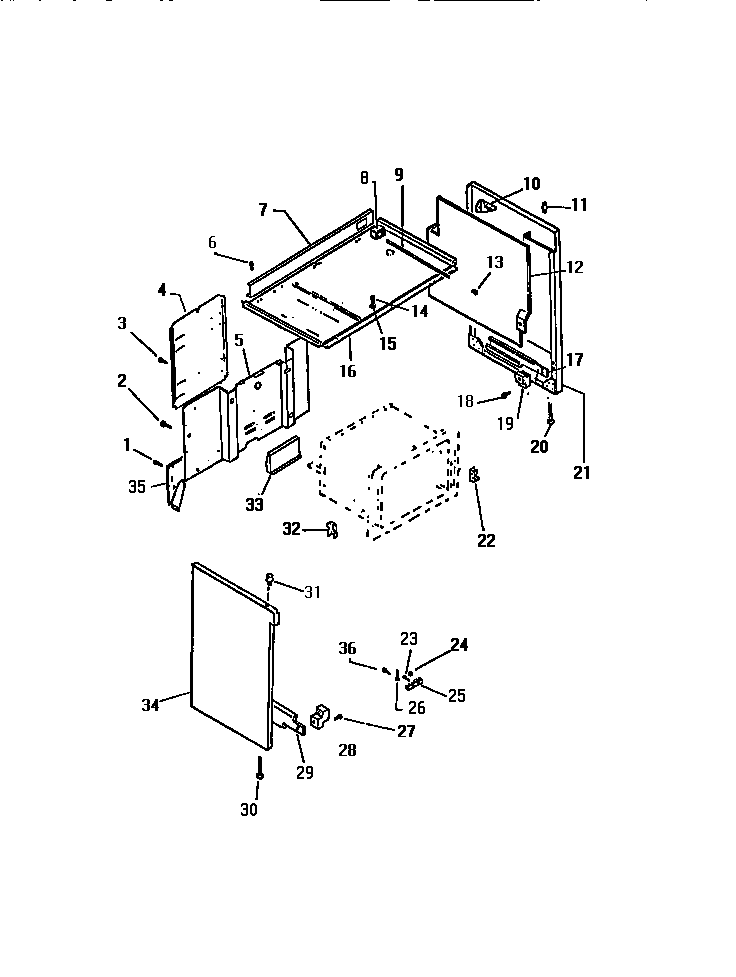

REP306CD1 06 – PANELS

Products

Position	Product
*81081	WCI K5011207
1	WCI K5133501
3A	WCI K1099962
4	COVER, WIRE
5	BACK
7	WCI K5287902
8	SWITCH-DOOR
9	PUSH ROD
10	GUSSET, BACKGRD (2)
12	RETAINER-INSUL (2)
13	WCI K1322682
15	WASHER, PADDED
16	WCI K5025802
17	RAIL, DWR., RH
18	SCREW
21	END PANEL, RH, ALMOND
23	SCREW
24	WCI K1266
25	5304409888 Frigidaire Oven Terminal Block with Hardware
26	STRAP-GROUND
27	WCI K1164589
28	GUIDE
29	RAIL, DWR, LH
30	LEG
31	BUMPER
32	SPACER, RAIL
33	WCI K5134501
34	END PANEL, LH, ALMOND
35	GUSSET REAR, LH
35	GUSSET, RH
36	08002868 Frigidaire 0 Screw Assembly
