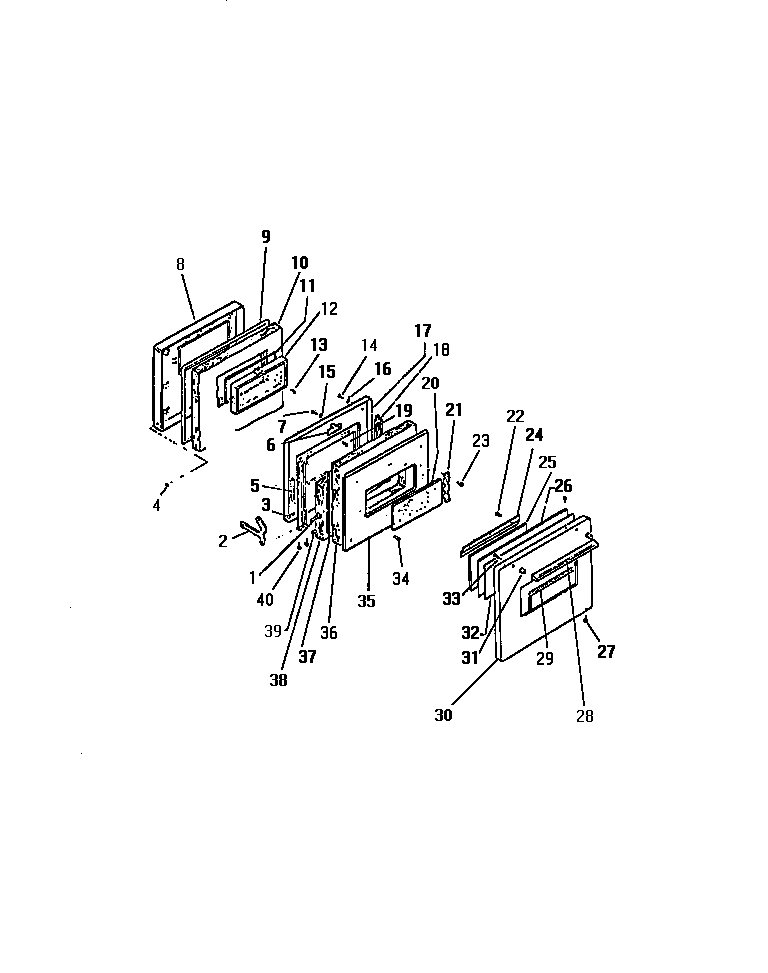

REP306CF0 04 – DOOR

Products

Position	Product
1	AXLE
2	ARM ASSY.
3	RIVET
4	WCI KGM142001
5	WCI K1302501
6	STRIKE ASSEMBLY
8	BAFFLE
9	GASKET
10	WCI K1322622
11	WCI K1322069
12	WCI K1322068
16	WASHER, PADDED
17	WCI K1324720
18	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
20	WCI K1317924
21	RETAINER, GLASS (2)
22	SCREW
24	BRACKET-MTG (2)
25	WCI K1313244
26	PANEL-INSULATOR PAD
28	HANDLE – DRAWER (CHROME)
29	MOULDING OUTER GLASS
30	WCI K1317631
31	SPACER (2)
32	INSULATION-PANEL
33	WCI K5104201
34	08002868 Frigidaire 0 Screw Assembly
35	WCI K5276901
36	WCI K1322652
37	WCI K1318825
38	WCI K1322651
39	WCI K1309794
40	WCI K1164550
