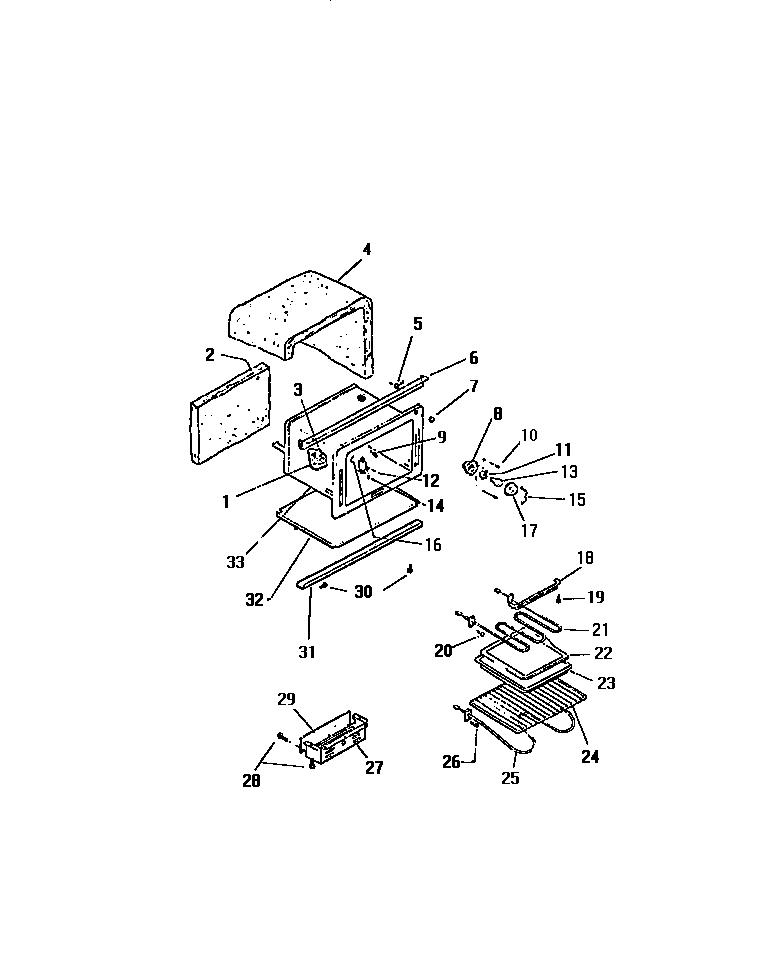

REP306CF0 05 – OVEN CAVITY

Products

Position	Product
1	BRACKET THERM. BULB
2	INSULATION-OVEN BACK
4	WCI K1311331
6	WCI K1325636
7	PLUG-BUTTON 3/4``
8	CUP, OVEN LT
9	131243700 Frigidaire Screw
11	316116400 Frigidaire Oven Light Socket
12	VENT TUBE
13	316538904 Frigidaire Oven Lamp Light
14	SCREW
15	RETAINING WIRE
16	WCI KGM142017
17	5304524341 Frigidaire Lens
18	HANGER
21	5303051516 Frigidaire Broil Element
22	GRILLE, BROILER
23	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
24	RACK (2)
25	5303051519 Frigidaire Oven 2600W Bake Element
26	08002868 Frigidaire 0 Screw Assembly
27	WCI K1315121
29	WCI K1303601
30	SCREW
31	CHANNEL, OV. SUPT.
32	WCI K1317644
33	WCI K1325538
