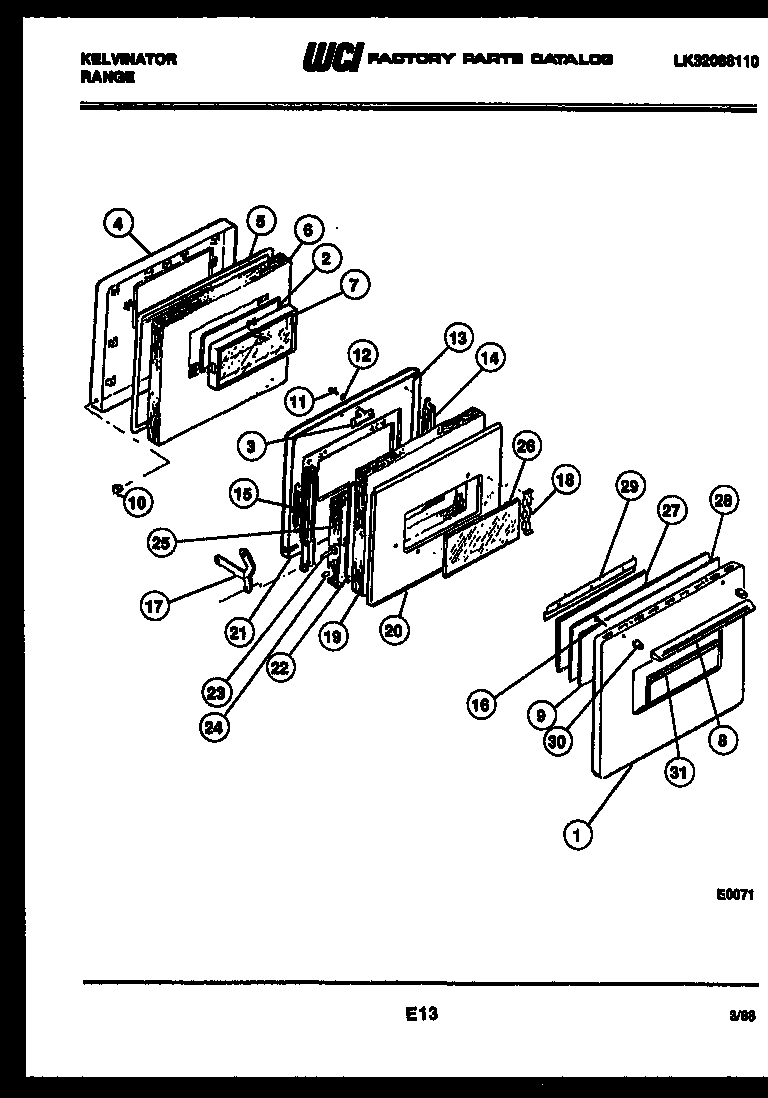

REP306CF2 04 – DOOR PARTS

Products

Position	Product
1	WCI K1317631
2	WCI K1322069
3	WCI K1167830
4	WCI 3017634
5	GASKET
6	WCI K1322622
7	WCI K1322068
8	HANDLE – DRAWER (CHROME)
9	INSULATION-PANEL
10	WCI KGM142001
11	WCI K1164550
12	WASHER, PADDED
13	DOOR LINER
14	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
15	WCI K1302501
16	WCI K5104201
17	ARM ASSY.
18	RETAINER, GLASS (2)
19	WCI K1322652
20	WCI K5276901
21	WCI K1100733
22	WCI K1318825
23	AXLE
24	WCI K1309794
25	WCI K1322651
26	WCI K1317924
27	WCI K1313244
28	PANEL-INSULATOR PAD
29	BRACKET-MTG (2)
30	SPACER (2)
31	MOULDING OUTER GLASS
