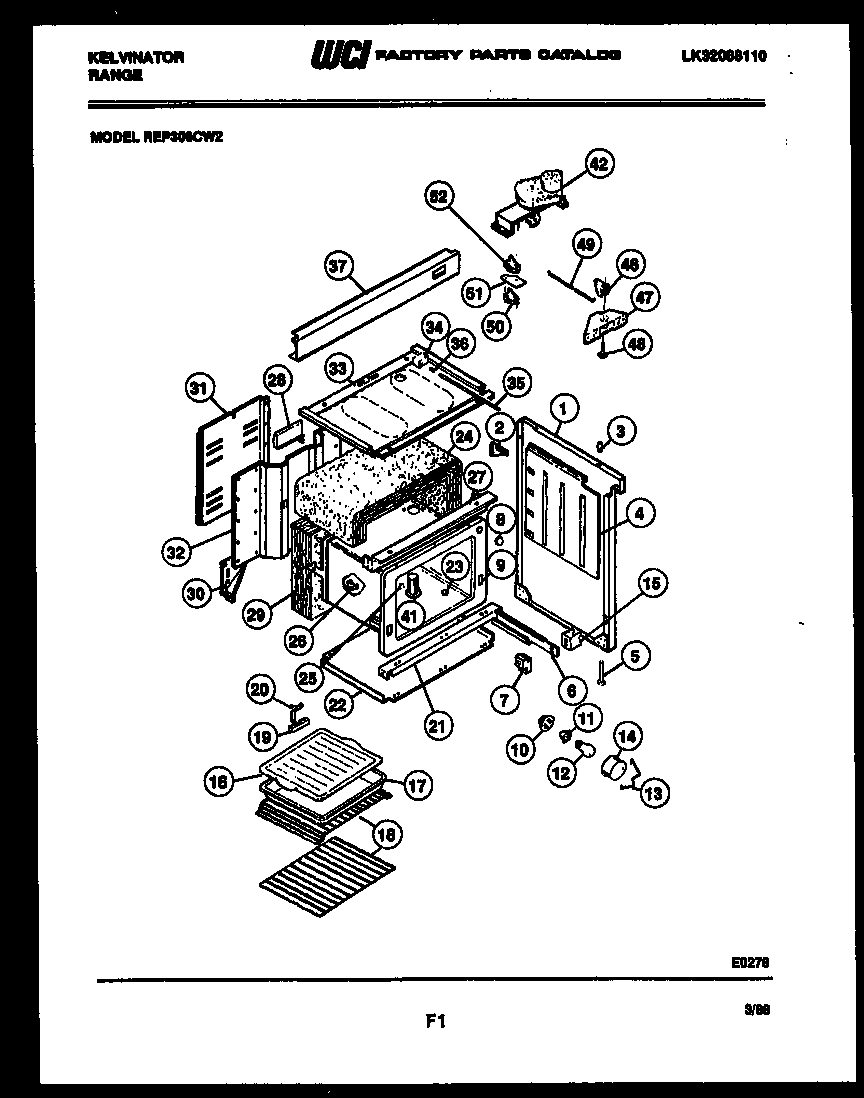

REP306CF2 05 – BODY PARTSadmin2025-04-26T11:50:18+00:00REP306CF2 05 – BODY PARTS
Products
| Position | Product |
|---|
| 1 | WCI K5024606 |
| 1 | WCI K5024605 |
| 2 | GUSSET, BACKGRD (2) |
| 3 | BUMPER |
| 4 | RETAINER-INSUL (2) |
| 5 | LEG |
| 6 | RAIL, DWR, LH |
| 6 | RAIL, DWR., RH |
| 7 | GUIDE |
| 9 | WCI K1325538 |
| 10 | CUP, OVEN LT |
| 11 | 316116400 Frigidaire Oven Light Socket |
| 12 | 316538904 Frigidaire Oven Lamp Light |
| 13 | RETAINING WIRE |
| 14 | 5304524341 Frigidaire Lens |
| 15 | SPACER, RAIL |
| 16 | GRILLE, BROILER |
| 17 | 5304442087 Frigidaire Range Wall Oven Broil Pan and Insert |
| 18 | 316067902 Frigidaire Oven Rack |
| 18 | WCI K5133501 |
| 19 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 20 | STRAP-GROUND |
| 21 | CHANNEL, OV. SUPT. |
| 22 | WCI 3017394 |
| 23 | PLUG-BUTTON 3/4`` |
| 24 | WCI K1311331 |
| 25 | WCI KGM142017 |
| 26 | BRACKET THERM. BULB |
| 27 | WCI K1325636 |
| 28 | WCI K5134501 |
| 29 | INSULATION-OVEN BACK |
| 30 | WCI 3017481 |
| 30 | WCI 3017482 |
| 31 | COVER - WIRE |
| 32 | WCI 3017535 |
| 33A | WASHER, PADDED |
| 33 | WCI K5025802 |
| 34 | SWITCH-DOOR |
| 35 | PUSH ROD |
| 36 | WCI K1322682 |
| 37 | WCI 3017633 |
| 41 | VENT TUBE |
| 42 | LATCH-MOTOR |
| 46 | WCI K5260202 |
| 47 | HOUSING, DOOR LATCH |
| 48 | AXLE |
| 49 | WCI K5271201 |
| 50 | SWITCH-LOWER |
| 51 | INSULATOR |
| 52 | WCI K1167190 |
