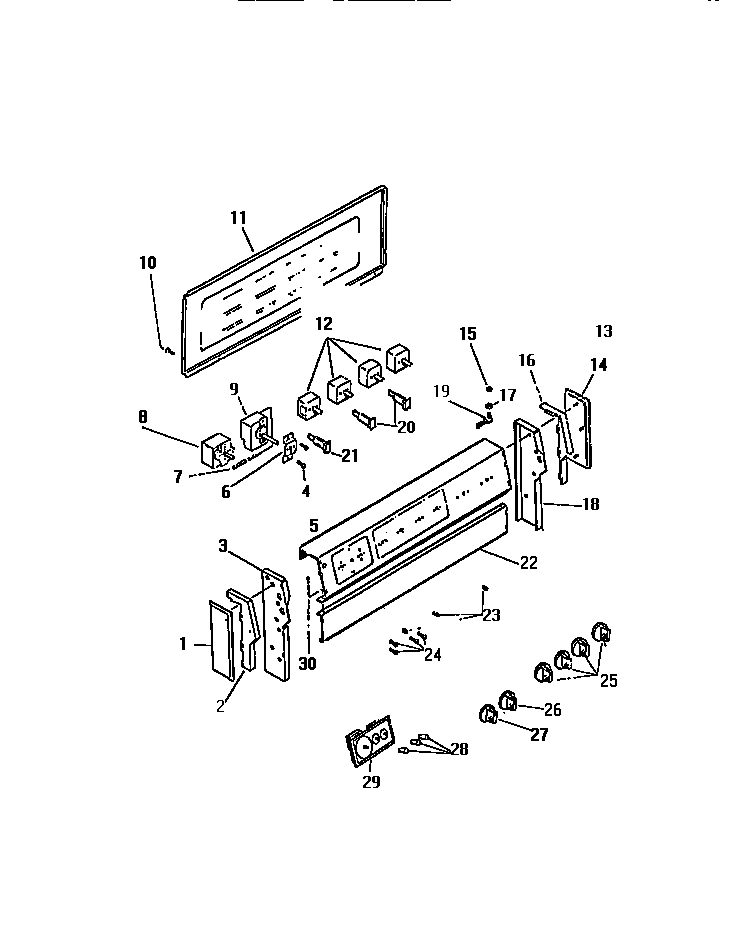

REP306CT1 02 – BACKGUARD

REP306CT1 02 – BACKGUARD

Written by

in

REP306CT1 02 – BACKGUARD

Products

PositionProduct
1WCI K5128002
2WCI K5128106
3WCI K5127702
4SCREW – THERMO BRACKET 6-32 X 3/16 (2)
5WCI K5266702
6WCI K5267103
7WCI K1301788
8SWITCH-OVEN SELECT
10WCI K1324562
11COVER, WIRE
125303935086 Frigidaire Oven Top Burner Switch Kit
12SWITCH-SURFACE UNIT (4)
13NUT (3)
14WCI K5128001
15WCI K5051701
16WCI K5128105
17NUT – HEX – LAMP SW. (2)
18WCI G5127701
19WCI K1312868
20SIGNAL LIGHT-SURF UNIT
21SIGNAL LIGHT, OVEN
22PANEL BACKSPLASH, WHEAT
24WCI K5139002
27KNOB OVEN SELECTOR
28WCI K1167946
28AWCI K1167984
29ABRACKET MOUNTING
29WCI K5260501
29BSCREW
3008002868 Frigidaire 0 Screw Assembly
