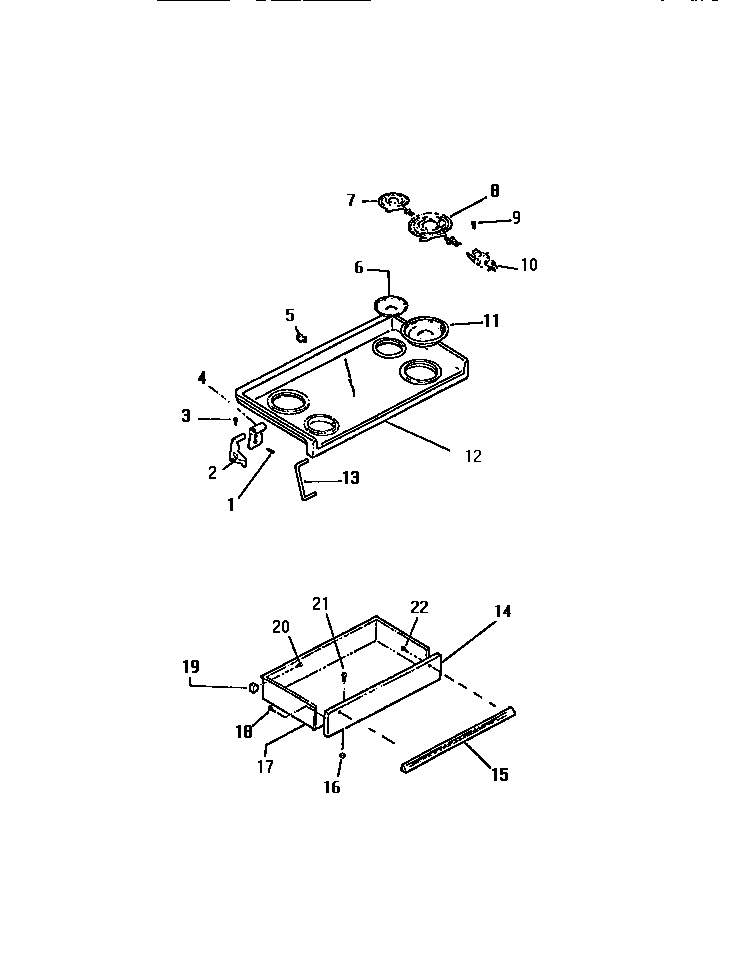

REP306CT1 03 – TOP/DRAWER

REP306CT1 03 – TOP/DRAWER

Written by

in

REP306CT1 03 – TOP/DRAWER

Products

PositionProduct
2WCI K1315630
2WCI K1315631
308002868 Frigidaire 0 Screw Assembly
4WCI K1315632
5WCI K1315541
6316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
7318372211 Frigidaire Oven 6" Electric Range Burner Kit
8316442301 Frigidaire Oven 8 Coil Element 2600W
95308014215 Frigidaire Oven Screw
105303935058 Frigidaire Oven Burner Receptacle Kit
11316048413 Frigidaire Oven Range Chrome 8" Drip Bow
12WCI K5270111
13BWCI K1164550
13ARETAINER
13ROD
14WCI K1325099
15WCI K51325038
165303013272 Frigidaire Oven Nut
17DRAWER
19GUIDE
22SCREW
