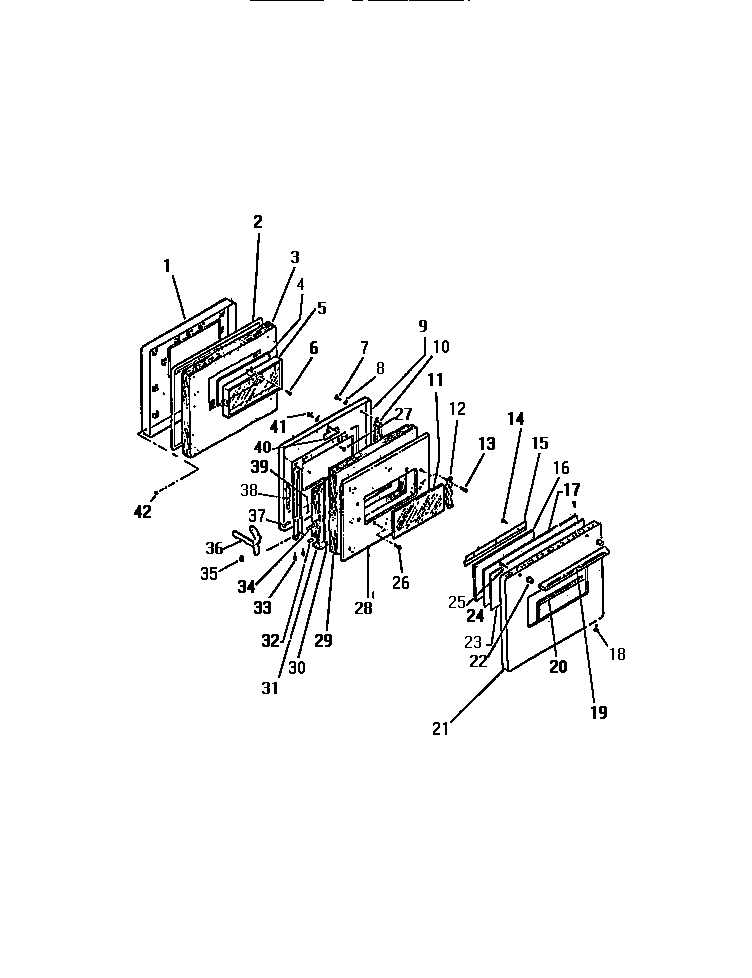

REP306CT1 04 – DOOR

Products

Position	Product
1	BAFFLE
2	GASKET
3	WCI K1322622
4	WCI K1322069
5	WCI K1322068
8	WASHER, PADDED
9	WCI K1324720
10	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
11	WCI K1317924
12	RETAINER, GLASS (2)
14	SCREW
15	BRACKET-MTG (2)
16	WCI K1313244
17	PANEL-INSULATOR PAD
19	HANDLE – DRAWER (CHROME)
20	MOULDING OUTER GLASS
21	WCI K1317633
22	SPACER (2)
23	INSULATION-PANEL
24	WCI K1099962
25	WCI K5104201
26	08002868 Frigidaire 0 Screw Assembly
27	WCI K1164557
28	WCI K5276901
29	WCI K1322652
30	WCI K1318825
31	WCI K1322651
32	WCI K1309794
33	WCI K1164285
34	AXLE
35	WCI K1311648
36	ARM ASSY.
37	RIVET
38	WCI K1302501
39	WCI K1164387
40	STRIKE ASSEMBLY
41	WCI K1164550
42	WCI KGM142001
