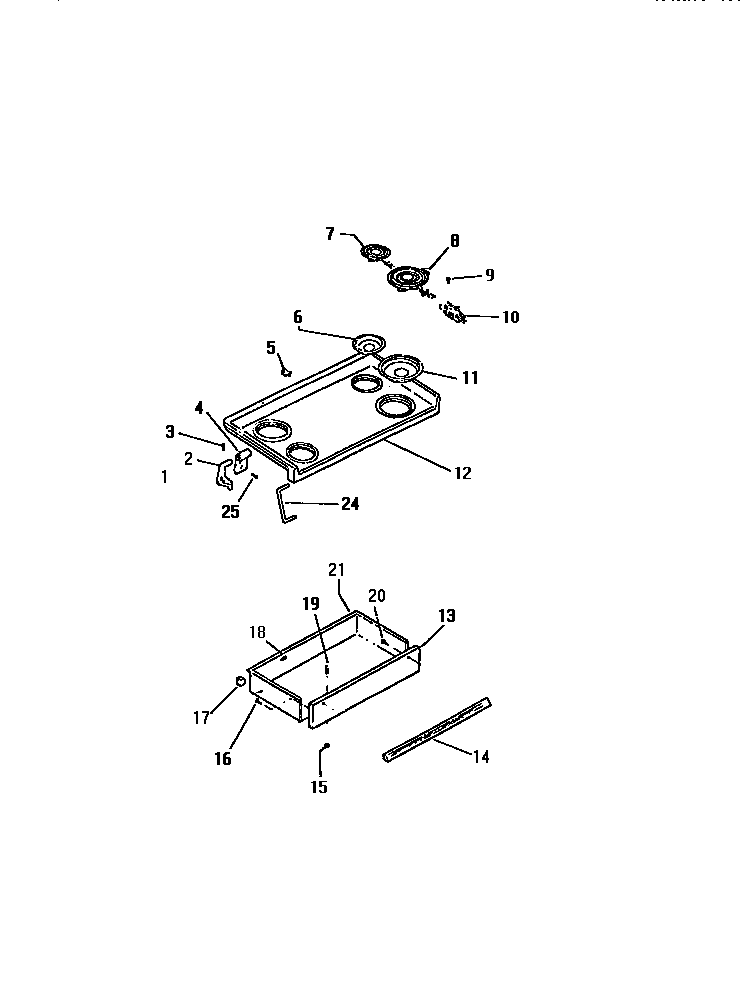

REP306CV0 03 – TOP/DRAWER

Products

Position	Product
1	WCI K1315631
2	WCI K1315630
4	WCI K1315632
5	WCI K1315541
6	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
7	318372211 Frigidaire Oven 6" Electric Range Burner Kit
8	316442301 Frigidaire Oven 8 Coil Element 2600W
9	5308014215 Frigidaire Oven Screw
10	5303935058 Frigidaire Oven Burner Receptacle Kit
11	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
12	WCI K5270110
13	WCI K1325098
14	HANDLE – DRAWER (CHROME)
15	5303013272 Frigidaire Oven Nut
17	GUIDE
20	SCREW
21	DRAWER
24B	RETAINER
24B	WCI K1164550
24	ROD
25	08002868 Frigidaire 0 Screw Assembly
