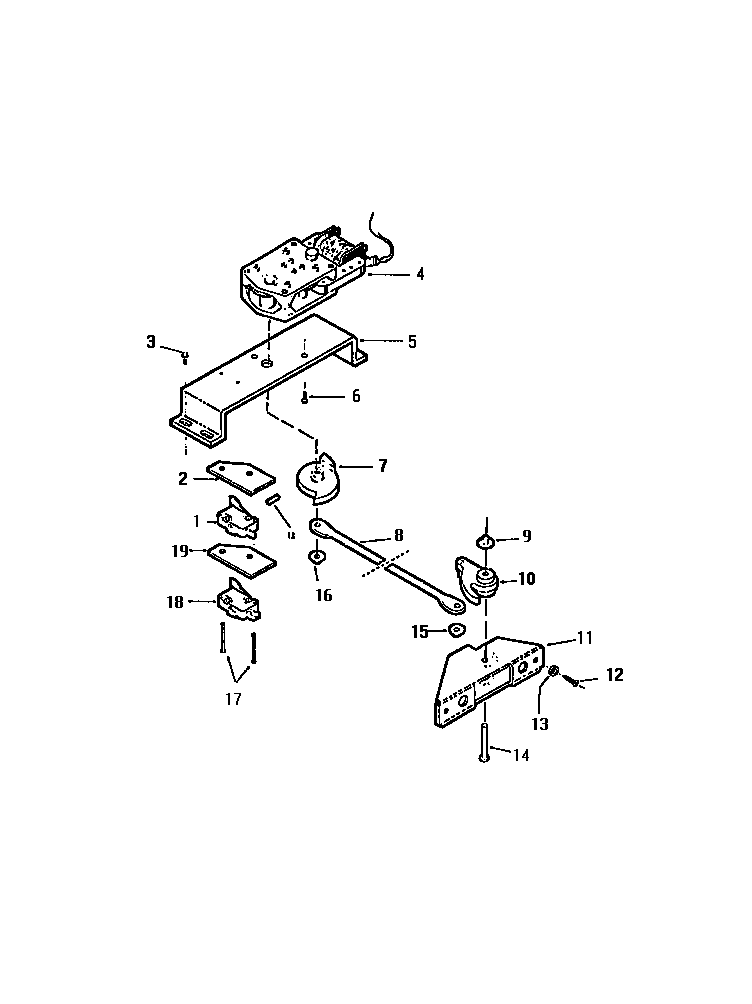

REP306CV0 07 – LATCH ASSEMBLY – Aparts

REP306CV0 07 – LATCH ASSEMBLY

Products

Position	Product
1	SWITCH-LOWER
3	08002868 Frigidaire 0 Screw Assembly
4	WCI K1323264
5	WCI K1324263
6	WCI K5157101
7	WCI K1309592
8	WCI K1317813
10	WCI K5260201
11	HOUSING, DOOR LATCH
12	WCI K1164550
13	WASHER, PADDED
14	WCI K1303756
15	WCI K1164424
16	WCI KGM455105
17	WCI K1164502
18	WCI K1308713
19	INSULATOR
