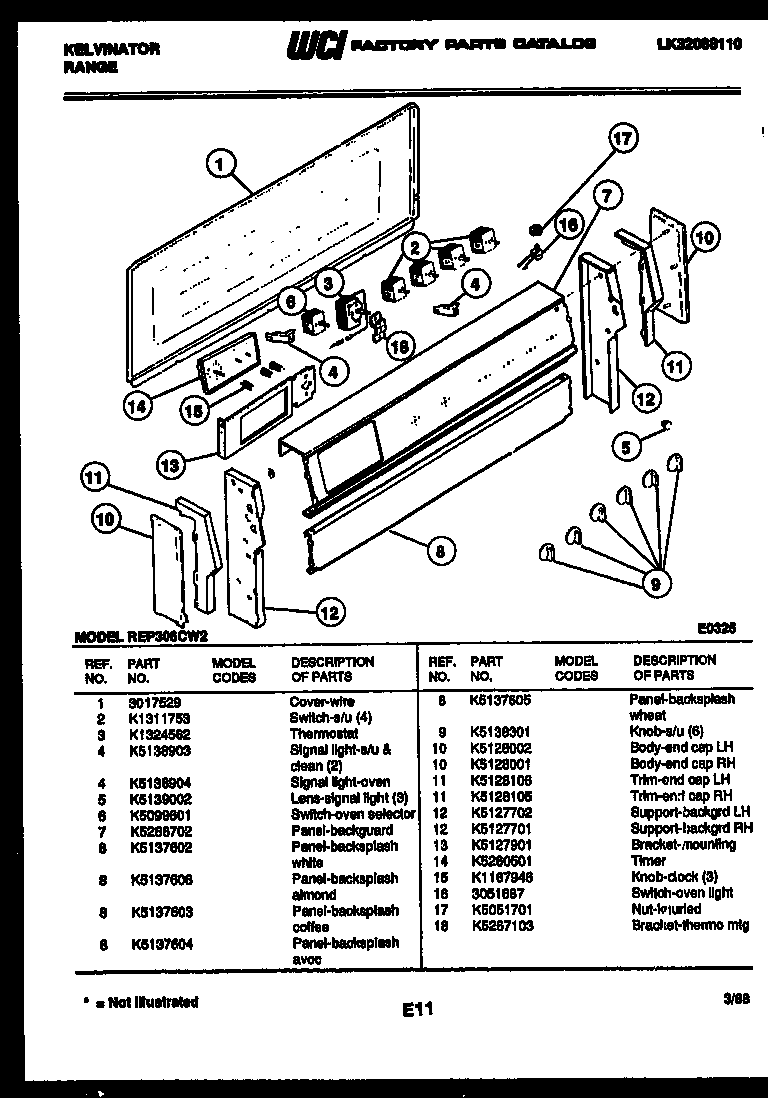

REP306CV2 02 – BACKGUARD

REP306CV2 02 – BACKGUARD

Written by

in

REP306CV2 02 – BACKGUARD

Products

Position	Product
1	COVER-WIRE, UPPER
2	SWITCH-SURFACE UNIT (4)
3	WCI K1324562
4	SIGNAL LIGHT, OVEN
4	SIGNAL LIGHT-SURF UNIT
5	WCI K5139002
6	SWITCH-OVEN SELECT
7	WCI K5266702
8	PANEL BACKSPLASH, ALMOND
9	WCI K5138301
10	WCI K5128002
10	WCI K5128001
11	WCI K5128105
11	WCI K5128106
12	SUPPORT-BACKGRD RH
12	WCI K5127702
13	BRACKET MOUNTING
14	WCI K5260501
15	WCI K1167946
16	SWITCH-OVEN LITE
17	WCI K5051701
18	WCI K5267103
