REP306CW0 02 – BACKGUARD

REP306CW0 02 – BACKGUARD

Written by

in

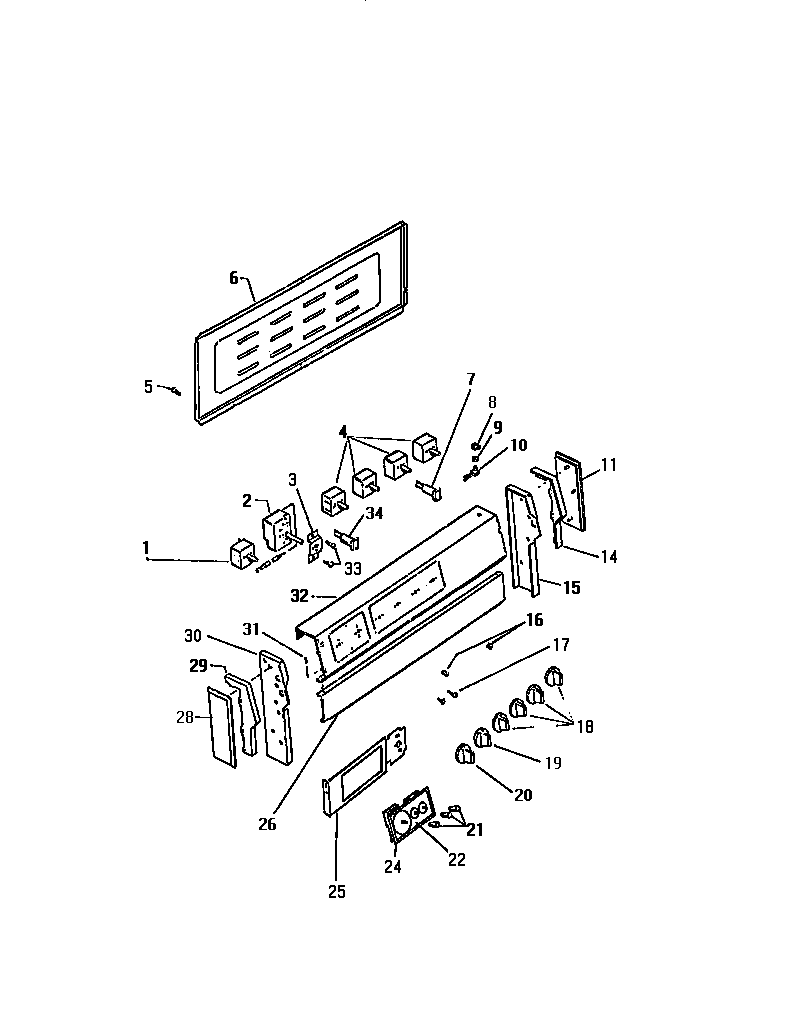

REP306CW0 02 – BACKGUARD

Products

PositionProduct
1SWITCH-OVEN SELECT
2WCI K1324562
3WCI K5267103
45303935086 Frigidaire Oven Top Burner Switch Kit
4BSWITCH-SURFACE UNIT (4)
6COVER, WIRE
7SIGNAL LIGHT-SURF UNIT
8WCI K505180
9NUT – HEX – LAMP SW. (2)
10WCI K5051801
11WCI K5128001
11ANUT (3)
14WCI K5128105
15SUPPORT-BACKGRD RH
16WCI K5139002
20KNOB OVEN SELECTOR
21WCI K1167946
22WCI K1167984
24WCI K5260501
24ASCREW
25BRACKET MOUNTING
26PANEL BACKSPLASH, WHITE
28WCI K5128002
29WCI K5128106
30WCI K5127702
3108002868 Frigidaire 0 Screw Assembly
32WCI K5266702
33SCREW – THERMO BRACKET 6-32 X 3/16 (2)
34SIGNAL LIGHT, OVEN
