Aparts

REP306CW0 03 – TOP/DRAWER

REP306CW0 03 – TOP/DRAWER

Written by

in

REP306CW0 03 – TOP/DRAWER

Products

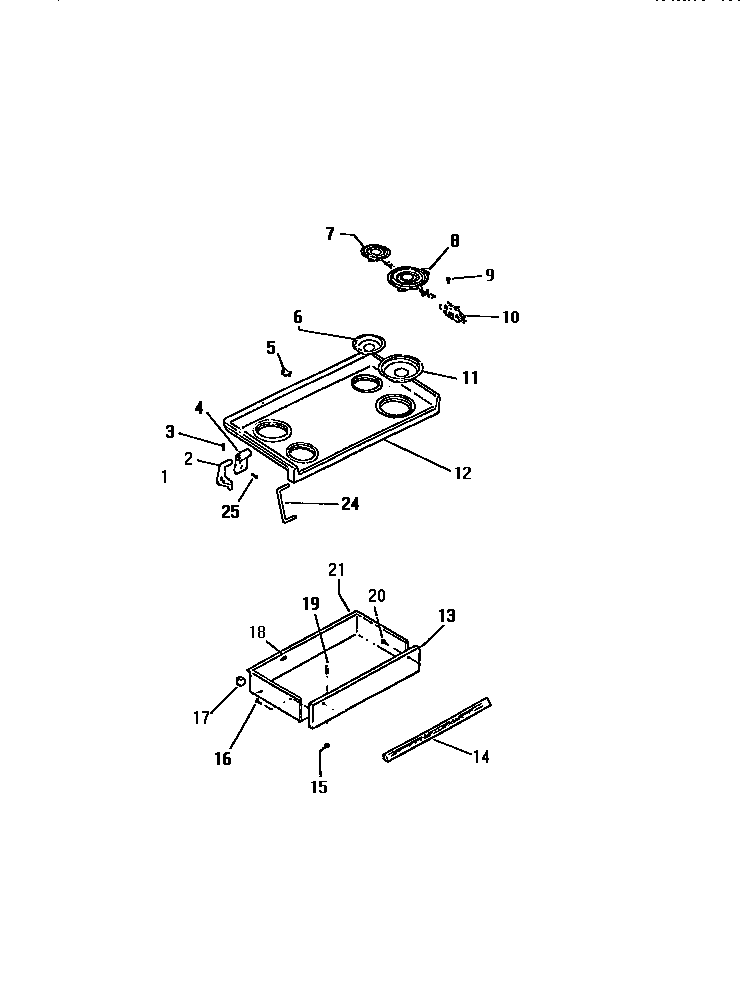

PositionProduct
1WCI K1315631
2WCI K1315630
4WCI K1315632
5WCI K1315541
6316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
7318372211 Frigidaire Oven 6" Electric Range Burner Kit
8316442301 Frigidaire Oven 8 Coil Element 2600W
95308014215 Frigidaire Oven Screw
105303935058 Frigidaire Oven Burner Receptacle Kit
11316048413 Frigidaire Oven Range Chrome 8" Drip Bow
12WCI K5270108
13WCI K1325096
14HANDLE – DRAWER (CHROME)
155303013272 Frigidaire Oven Nut
17GUIDE
20SCREW
21DRAWER
24BRETAINER
24BWCI K1164550
24ROD
2508002868 Frigidaire 0 Screw Assembly
