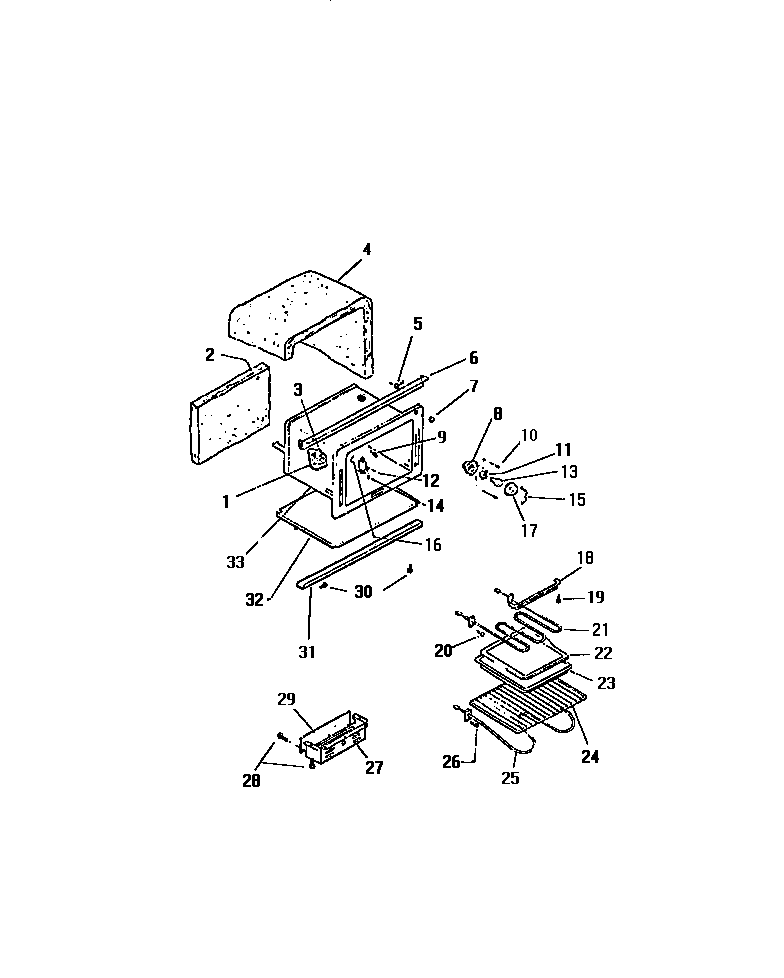

REP306CW0 05 – OVEN CAVITY

Products

PositionProduct
1BRACKET THERM. BULB
2INSULATION-OVEN BACK
4WCI K1311331
6WCI K1325636
7PLUG-BUTTON 3/4“
8CUP, OVEN LT
9131243700 Frigidaire Screw
11316116400 Frigidaire Oven Light Socket
12VENT TUBE
13316538904 Frigidaire Oven Lamp Light
14SCREW
15RETAINING WIRE
16WCI KGM142017
175304524341 Frigidaire Lens
18HANGER
215303051516 Frigidaire Broil Element
22GRILLE, BROILER
235304442087 Frigidaire Range Wall Oven Broil Pan and Insert
24RACK (2)
255303051519 Frigidaire Oven 2600W Bake Element
2608002868 Frigidaire 0 Screw Assembly
27WCI K1315121
29WCI K1303601
30SCREW
31CHANNEL, OV. SUPT.
32WCI K1317644
33WCI K1325538
