REP306CW1 07 – LATCH ASSEMBLY – Aparts

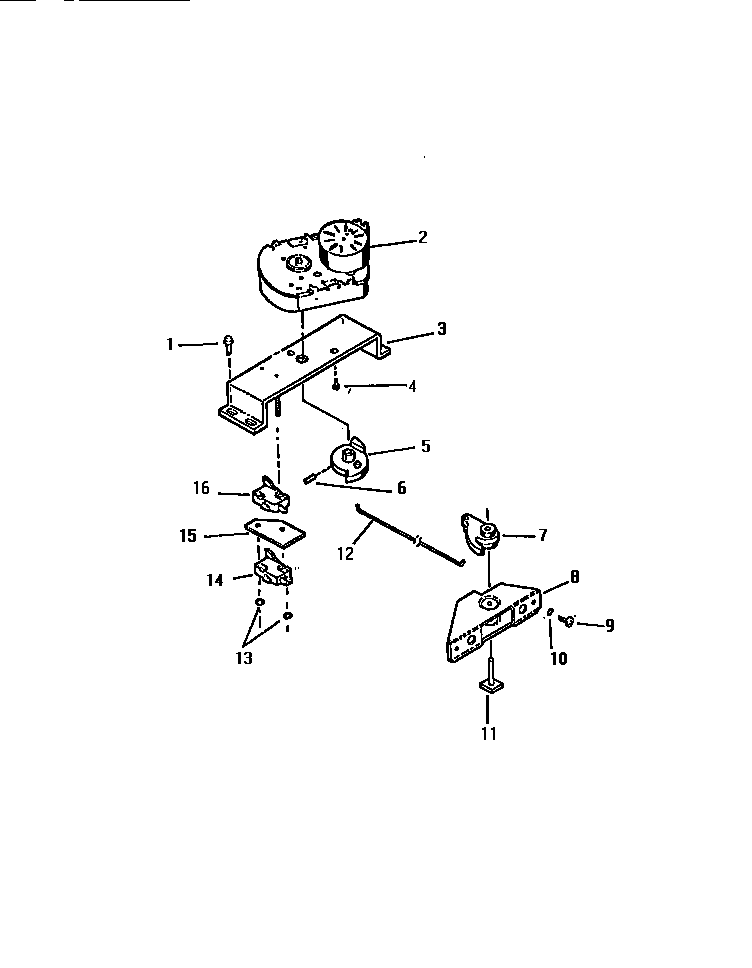

REP306CW1 07 – LATCH ASSEMBLY

Products

Position	Product
2	LATCH-MOTOR
3	WCI K5151613
4	08002868 Frigidaire 0 Screw Assembly
5	WCI K5151605
6	WCI K5271206
7	WCI K5260202
8	HOUSING, DOOR LATCH
9	WCI K1164550
10	WASHER, PADDED
11	AXLE
12	WCI K5271201
13	5303013272 Frigidaire Oven Nut
14	WCI K5151608
15	WCI K5151607
16	WCI K5151609
