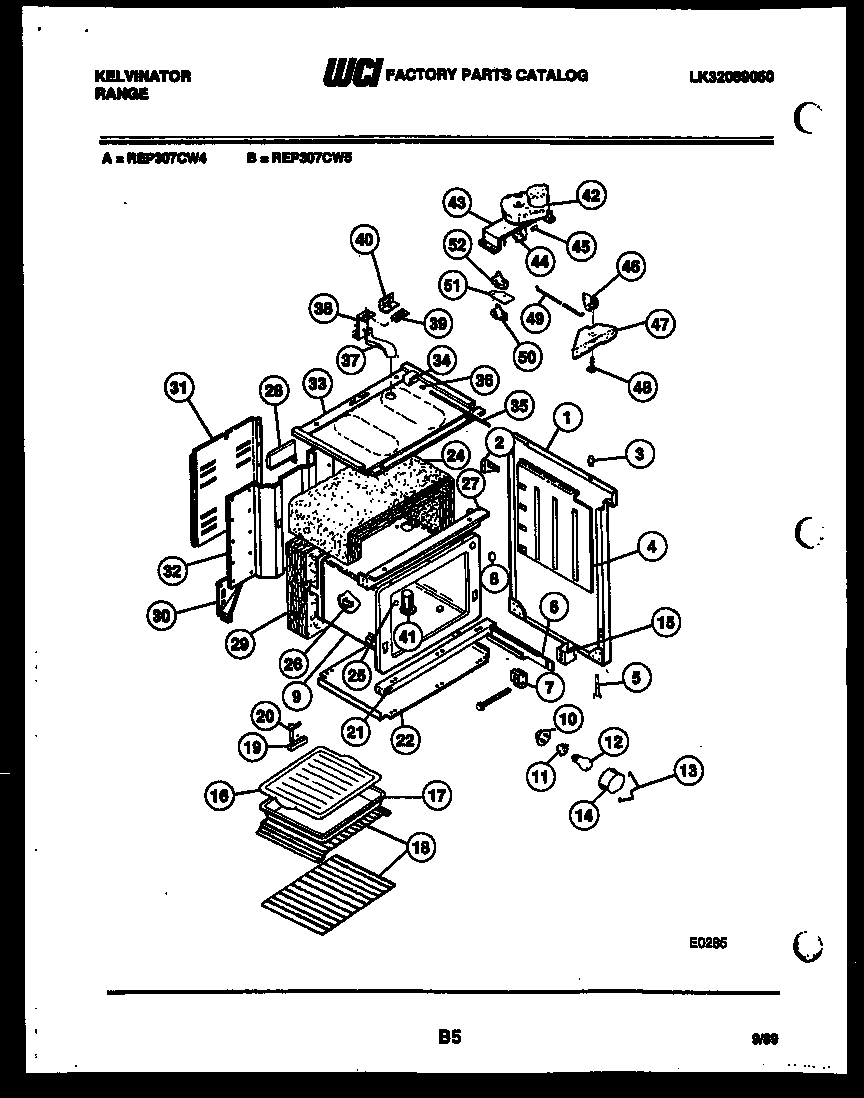

REP307CD5 03 – BODY

Products

Position	Product
*40496	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	END PANEL, RH, ALMOND
1A	WCI 08012530
2	GUSSET, BACKGRD (2)
3	BUMPER
4	RETAINER, INSULATION (2)
5	LEG, LEVELLER (4)
6	WCI 08015746
6A	RAIL, DRAWER LH
7	GUIDE
8	WCI 3051784
9	OVEN LINER
10	CUP, OVEN LT
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINING WIRE
14	5304524341 Frigidaire Lens
15	SPACER, RAIL
16	WCI 3205234
17	WCI 3205232
18	316067902 Frigidaire Oven Rack
18A	RACK-OFFSET
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	STRAP-GROUND
21	CHANNEL – OVEN SUPPORT LOWER
22	WCI 3203574
24	WCI K1311331
25	PLUG BUTTON – THERMO BULB HOLE
26	BRACKET THERM. BULB
27	CHANNEL, OVEN SUPPORT UPPER
28	WCI K5134501
29	INSULATION-OVEN BACK
30A	WCI 3017482
30	WCI 3017481
31	WCI 3009179
32	WCI 3017575
33A	WASHER, PADDED
33	WCI K005025704
34	SWITCH-DOOR
35	WCI K1322683
36	WCI 08007444
37	WCI K5130601
38	BRACKET, VENT TUBE
39	GASKET, OVEN VENT TUBE
40	WCI K1311371
41	WCI K5055201
42	MOTOR-LATCH
43	WCI K5151613
44	WCI K5151605
45	WCI K5151606
46	LATCH-DOOR
47	HOUSING-DOOR LATCH
48	WCI 08012004
49	WCI K5271201
50	SWITCH-LOWER
51	INSULATOR
52	WCI K1167190
