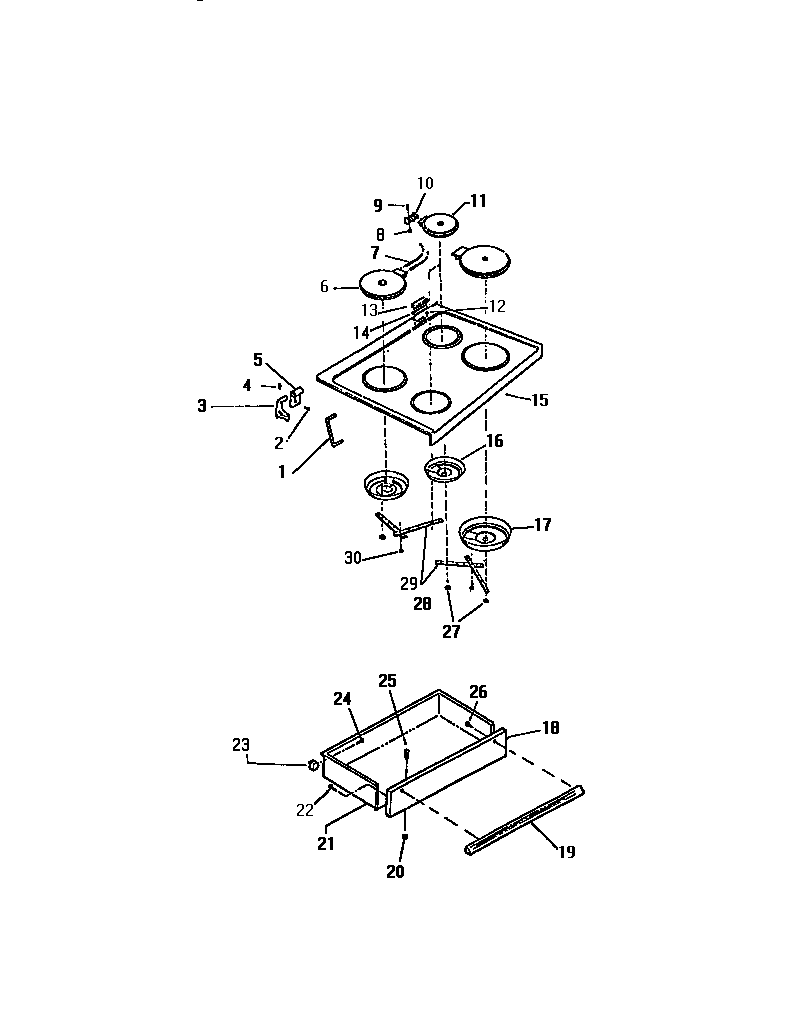

REP307CW3 03 – TOP/DRAWER

REP307CW3 03 – TOP/DRAWER

Written by

in

REP307CW3 03 – TOP/DRAWER

Products

Position	Product
*57762	WCI K5134702
1A	RETAINER
1	ROD
1B	WCI K1164550
3	WCI K1315630
3A	WCI K1315631
5	WCI K1315632
6	WCI K5129401
7	WCI K5000202
8	WCI K1167977
9	WCI K1167978
10	WCI K1167979
11	WCI K5129301
12	WCI K1164567
13	WCI K5130901
14	WCI K5130801
15	WCI K520120
17	WCI K5129601
18	WCI K1325096
19	HANDLE – DRAWER (CHROME)
20	5303013272 Frigidaire Oven Nut
21	DRAWER
23	GUIDE
26	SCREW
27	WCI K5130001
29	WCI K5129801
30	08002868 Frigidaire 0 Screw Assembly
