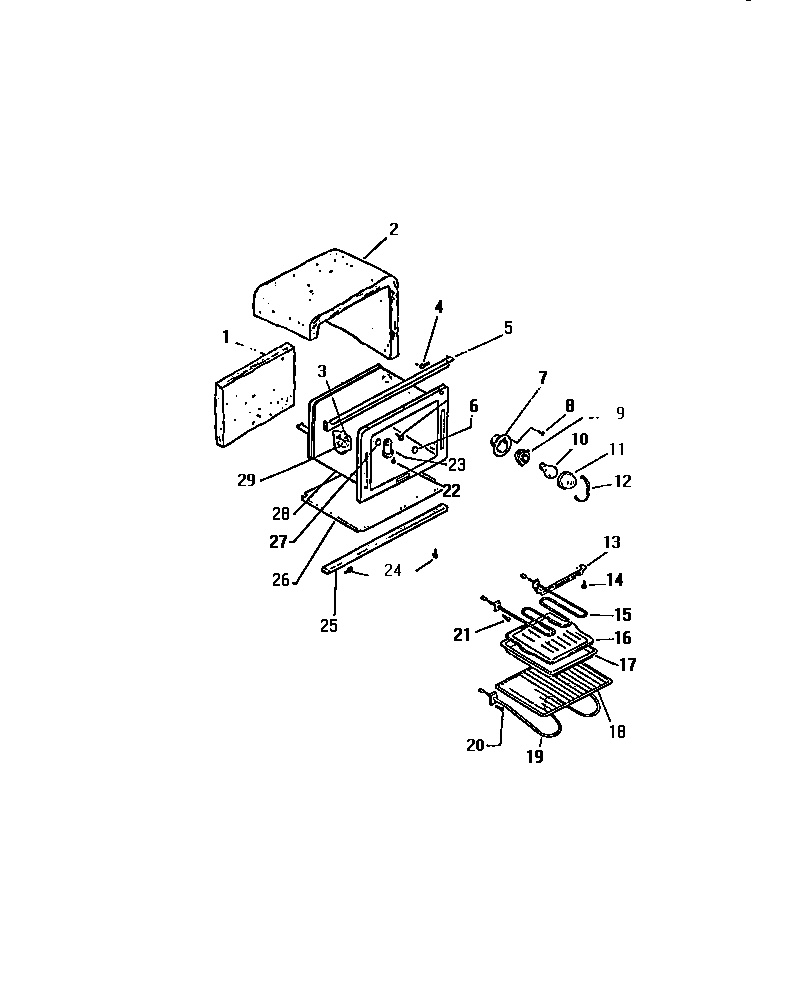

REP307CW3 05 – OVEN CAVITY

Products

Position	Product
*57764	WCI K5011209
*57763	WCI K5133501
1	INSULATION-OVEN BACK
2	WCI K1311331
5	WCI K5303702
6	PLUG-BUTTON 3/4“
7	CUP, OVEN LT
9	316116400 Frigidaire Oven Light Socket
10	316538904 Frigidaire Oven Lamp Light
11	5304524341 Frigidaire Lens
12	RETAINING WIRE
13	HANGER
15	5303051516 Frigidaire Broil Element
16	GRILLE, BROILER
17	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
18	RACK (2)
19	5303051519 Frigidaire Oven 2600W Bake Element
21	08002868 Frigidaire 0 Screw Assembly
22	SCREW
23	WCI K5055002
24	SCREW
25	CHANNEL, OV. SUPT.
26	WCI K5276502
27	WCI KGM142017
28	WCI K1325538
29	BRACKET THERM. BULB
