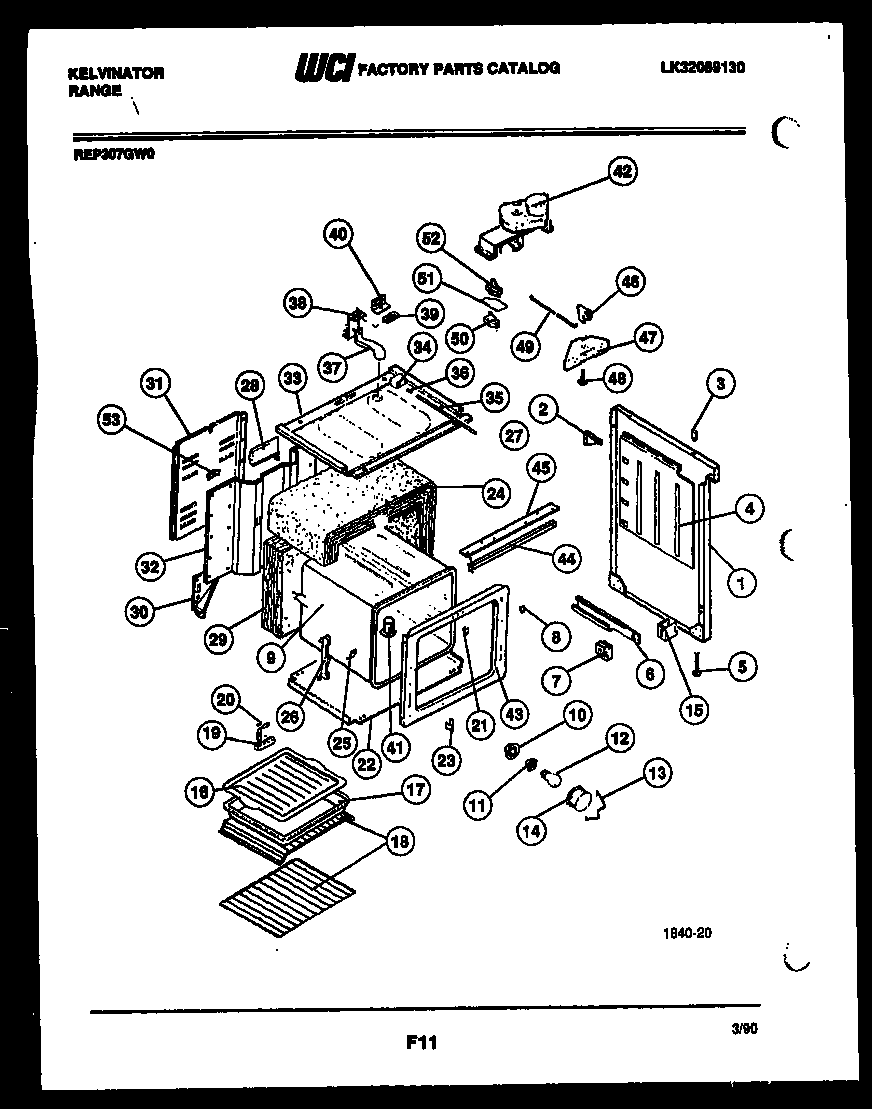

REP307GW0 03 – BODY PARTS

Products

Position	Product
*18210	CLIP-CAPILLARY (NON-ILLUSTRATED)
1A	WCI 08012528
1	WCI 08012527
2	GUSSET - BKGRD (2)
3	BUMPER - COOKTOP (4)
4	RETAINER, INSULATION (2)
5	SCREW-LEVELING (4)
6	WCI 08015746
6A	RAIL, DRAWER LH
7	GUIDE-DRAWER FRNT (2)
8	WCI 3051784
9	BODY-OVEN
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINER - LENS
14	5304524341 Frigidaire Lens
15	SPACER, DRAWER RAIL (2)
16	WCI 3205234
17	WCI 3205232
18	316067902 Frigidaire Oven Rack
18A	RACK-OFFSET
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	STRAP-GROUND
21	WCI 3202082
22	WCI 3206275
23	WCI 3019063
25	WCI 3201632
26	WCI 3201631
27	WCI 3051251
28	WCI 3051634
29	INSULATION-OVEN BACK
30A	WCI 3017482
30	WCI 3017481
31	COVER - WIRE
32	PANEL-BACK
33A	WASHER, PADDED
33	WCI K005025704
34	SWITCH - DOOR
35	ROD-SWITCH
36	WCI 08007444
37	WCI 3051655
38	BRACKET, VENT TUBE
39	GASKET, OVEN VENT TUBE
40	BRACKET-DOOR SW
41	TUBE-OVEN VENT
42	MOTOR-LATCH
43	WCI 5303207390
44	WCI 5303207391
45	WCI 5303207389
46	WCI 3202387
47	HOUSING-DOOR LATCH
48	WCI 08012007
49	WCI 3051649
50	SWITCH-LOWER
51	INSULATOR
52	WCI K1167190
52A	ANTI-TIP KIT, (NON-ILLUSTRATED)
53	WCI 3016281
