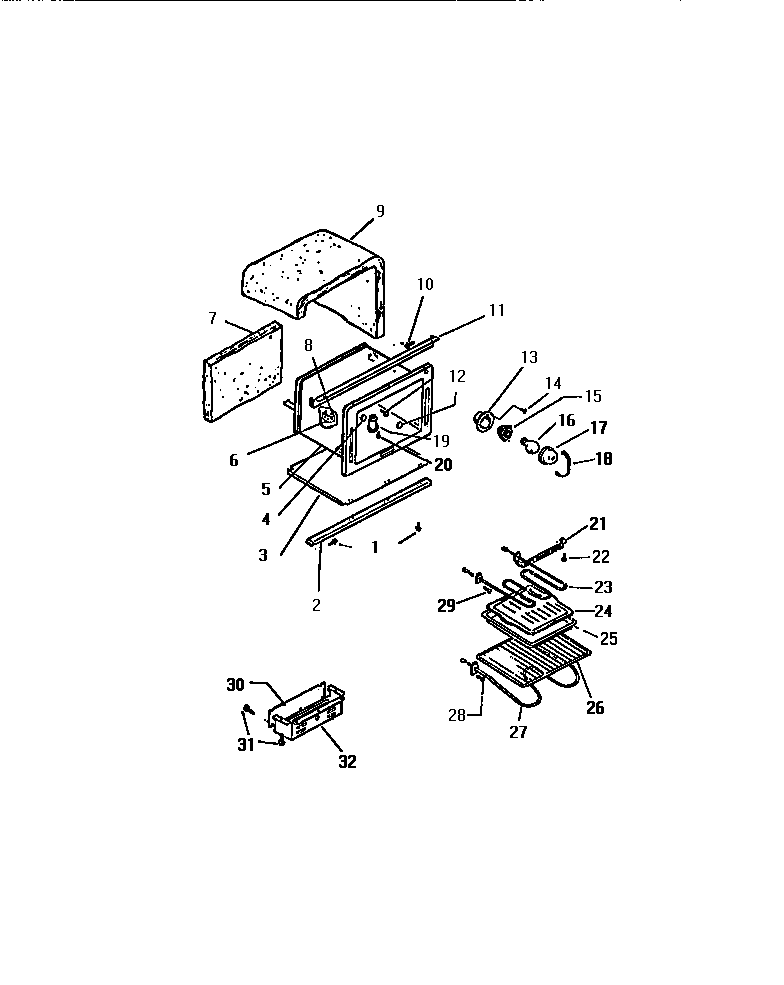

REP309CD0 05 – OVEN CAVITY

Products

PositionProduct
*48520WCI K5133501
*48521WCI K5011207
1SCREW
2CHANNEL, OV. SUPT.
3WCI K1317644
4WCI KGM142017
5WCI K1325538
6BRACKET THERM. BULB
7INSULATION-OVEN BACK
9WCI K1311331
11WCI K1325636
12PLUG-BUTTON 3/4“
13CUP, OVEN LT
15316116400 Frigidaire Oven Light Socket
16WCI K1186196
175304524341 Frigidaire Lens
18RETAINING WIRE
19WCI K5055002
20SCREW
21HANGER
235303051516 Frigidaire Broil Element
24GRILLE, BROILER
255304442087 Frigidaire Range Wall Oven Broil Pan and Insert
26RACK (2)
275303051519 Frigidaire Oven 2600W Bake Element
2908002868 Frigidaire 0 Screw Assembly
30WCI K1303601
32WCI K1315121
