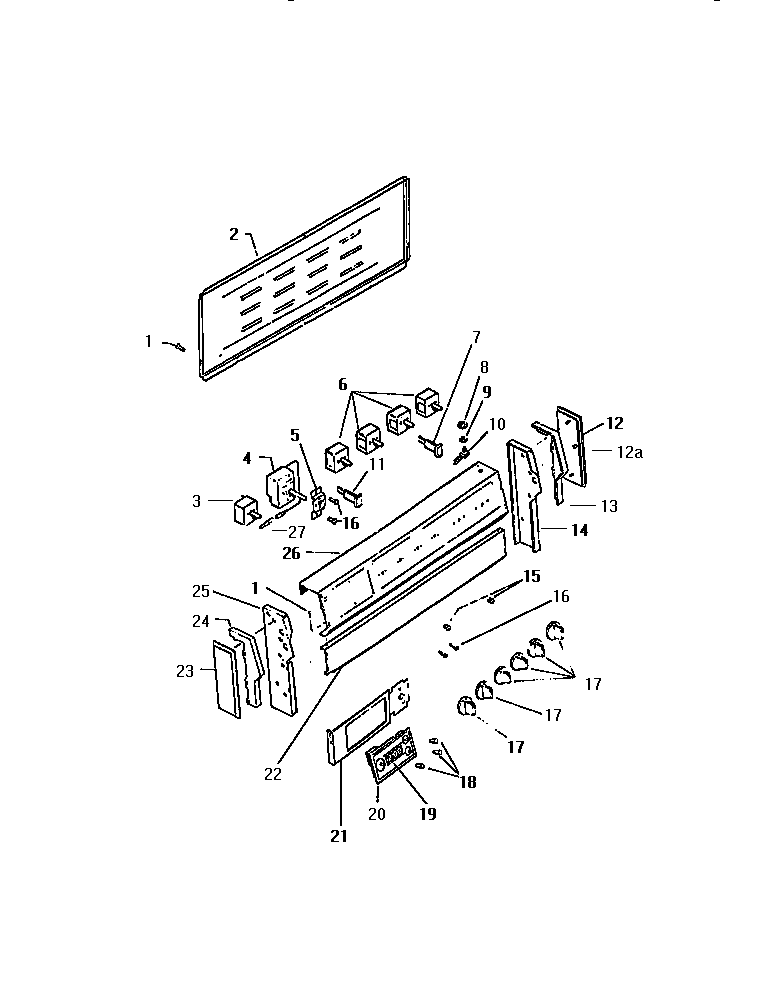

REP309CD1 02 – BACKGUARD

Products

Position	Product
*80046	NUT (3)
1	08002868 Frigidaire 0 Screw Assembly
2	COVER, WIRE
3	SWITCH-OVEN SELECT
4	WCI K1324562
5	WCI K5267103
6	5303935086 Frigidaire Oven Top Burner Switch Kit
7	SIGNAL LIGHT-SURF UNIT
8	WCI K5051701
9	NUT – HEX – LAMP SW. (2)
10	WCI K5051801
11	SIGNAL LIGHT, OVEN
12	WCI K5128001
13	WCI G5128105
14	SUPPORT-BACKGRD RH
15	WCI K5139002
16	SCREW – THERMO BRACKET 6-32 X 3/16 (2)
17	KNOB OVEN SELECTOR
18	WCI K1167946
19	WCI K1167986
20	WCI K5260601
21	BRACKET MOUNTING
22	PANEL BACKSPLASH, ALMOND
23	WCI K5128002
24	WCI K5128106
25	WCI K5127702
26	WCI K5266702
27	WCI K1301788
