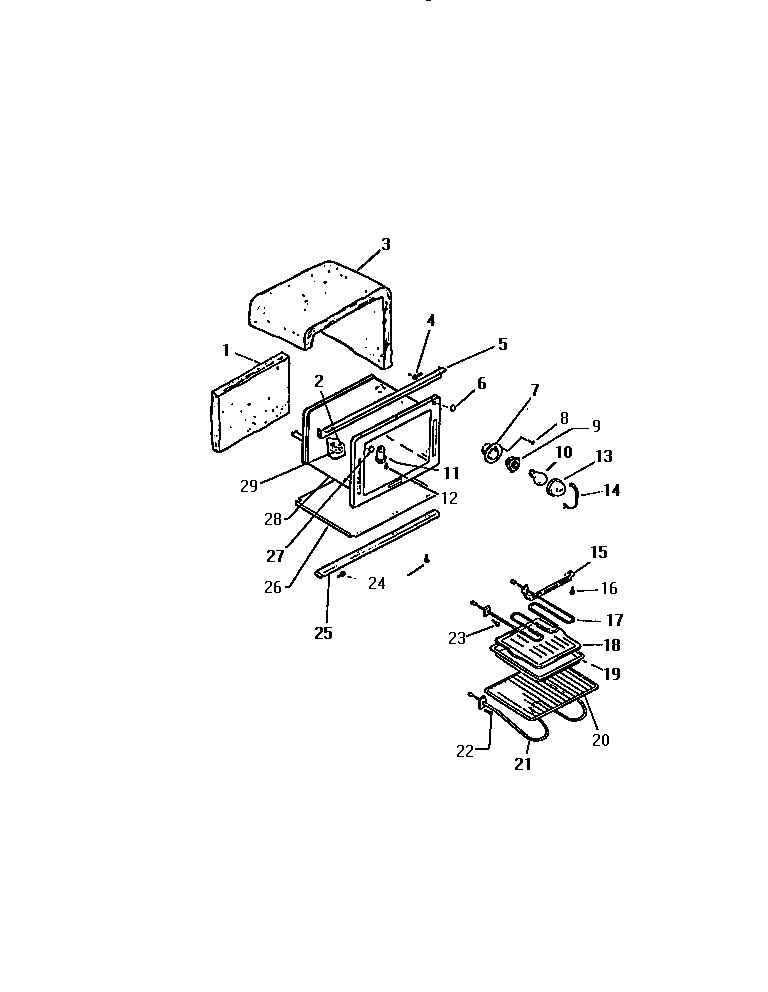

REP309CD1 05 – OVEN CAVITY

Products

Position	Product
*80042	WCI K5011207
*80041	WCI K5133501
1	INSULATION-OVEN BACK
3	WCI K1311331
5	WCI K1325636
6	WCI KGM14025
7	CUP, OVEN LT
9	316116400 Frigidaire Oven Light Socket
10	316538904 Frigidaire Oven Lamp Light
11	VENT TUBE
12	SCREW
13	5304524341 Frigidaire Lens
14	RETAINING WIRE
15	HANGER
17	5303051516 Frigidaire Broil Element
18	GRILLE, BROILER
19	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
20	RACK (2)
21	5303051519 Frigidaire Oven 2600W Bake Element
23	08002868 Frigidaire 0 Screw Assembly
24	SCREW
25	CHANNEL, OV. SUPT.
26	WCI K1317644
27	WCI KGM142017
28	WCI K1325538
29	BRACKET THERM. BULB
