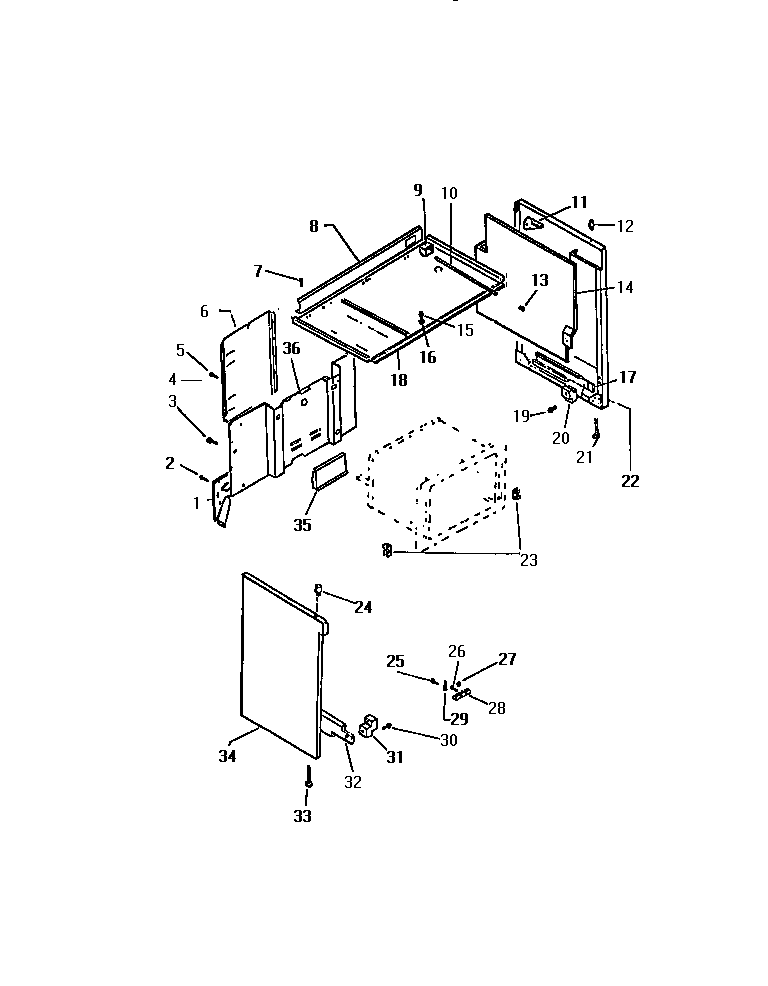

REP309CD1 06 – PANELS

Products

Position	Product
*80044	WCI K1307785
*80045	WCI K5011203
*80043	WCI K1311571
1	GUSSET REAR, LH
1A	GUSSET, RH
4	WCI K1099962
6	COVER, WIRE
8	WCI K5287902
9	SWITCH-DOOR
10	PUSH ROD
11	GUSSET, BACKGRD (2)
13	WCI K1322682
14	RETAINER-INSUL (2)
16	WASHER, PADDED
17	RAIL, DWR., RH
18	WCI K5025802
19	SCREW
22	END PANEL, RH, ALMOND
23	SPACER, RAIL
24	WCI K1307110
25	08002868 Frigidaire 0 Screw Assembly
26	WCI K1664479
27	WCI K1266
28	5304409888 Frigidaire Oven Terminal Block with Hardware
29	STRAP-GROUND
30	SCREW
31	GUIDE
32	RAIL, DWR, LH
33	LEG
34	END PANEL, LH, ALMOND
35	WCI K5134501
36	BACK
