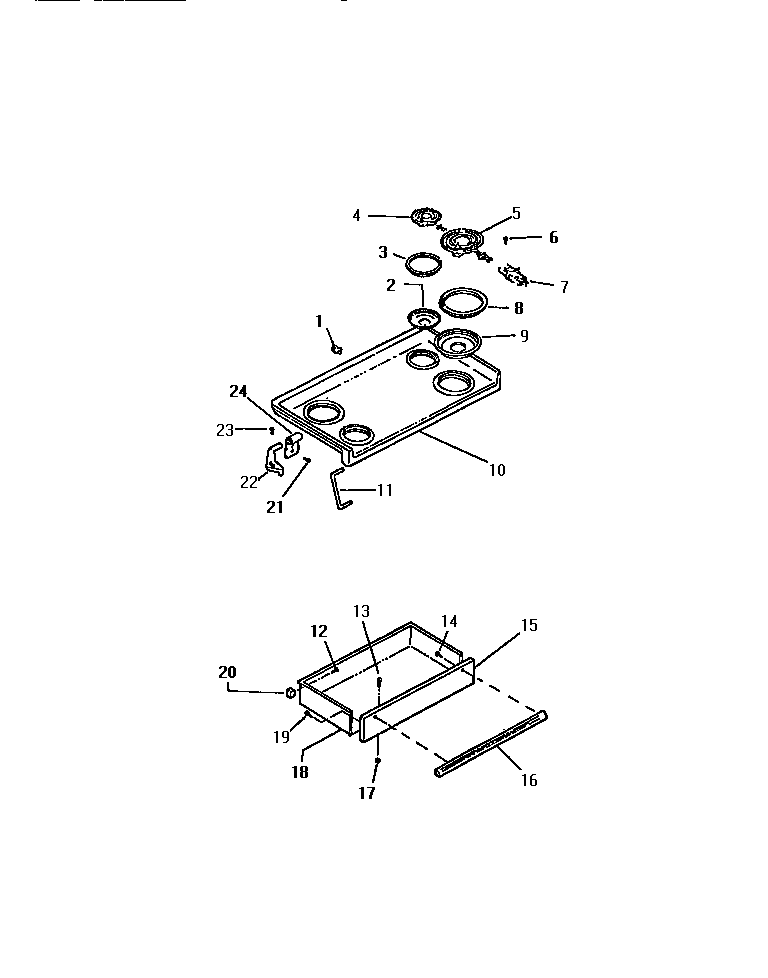

REP309CF1 03 – TOP/DRAWER

Products

Position	Product
1	WCI K1315541
2	WCI K1313966
3	WCI K1307602
4	318372211 Frigidaire Oven 6" Electric Range Burner Kit
5	316442301 Frigidaire Oven 8 Coil Element 2600W
6	5308014215 Frigidaire Oven Screw
7	5303935058 Frigidaire Oven Burner Receptacle Kit
8	WCI K1307599
9	WCI K1313967
10	WCI K5270109
11A	RETAINER
11B	WCI K1164550
11	ROD
15	WCI K1325097
16	HANDLE – DRAWER (CHROME)
17	5303013272 Frigidaire Oven Nut
18	DRAWER
19	SCREW
20	GUIDE
22A	WCI K1315631
22	WCI K1315630
23	08002868 Frigidaire 0 Screw Assembly
24	WCI K1315632
