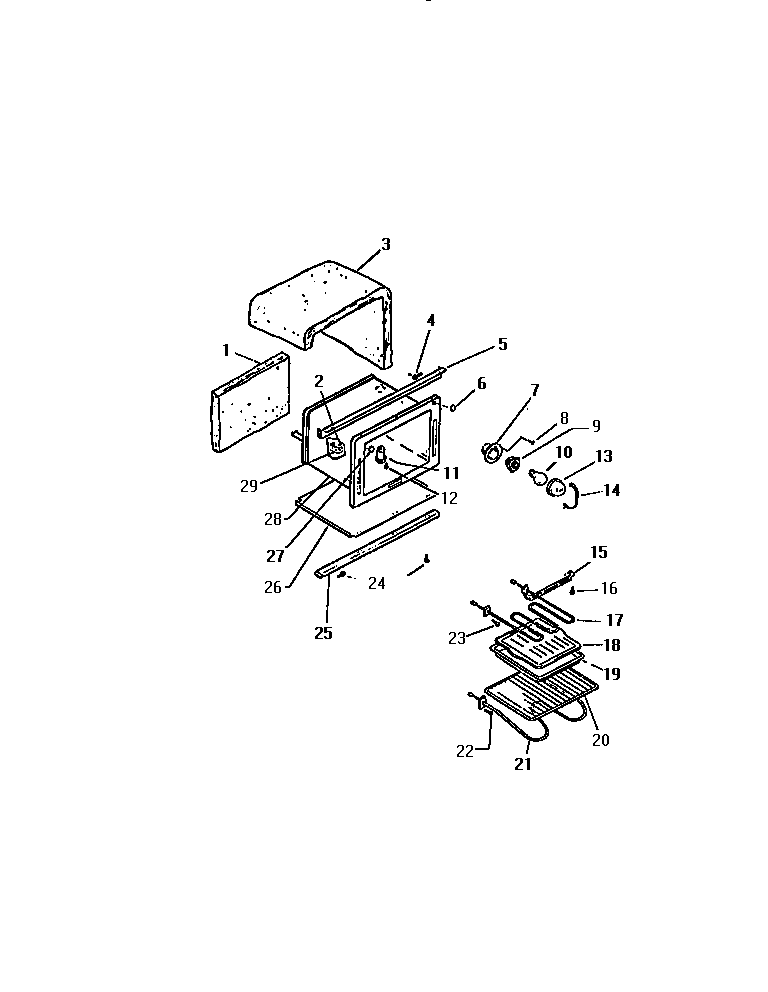

REP309CF1 05 – OVEN CAVITY

REP309CF1 05 – OVEN CAVITY

Written by

in

REP309CF1 05 – OVEN CAVITY

Products

PositionProduct
*80042WCI K5011207
*80041WCI K5133501
1INSULATION-OVEN BACK
3WCI K1311331
5WCI K1325636
6WCI KGM14025
7CUP, OVEN LT
9316116400 Frigidaire Oven Light Socket
10316538904 Frigidaire Oven Lamp Light
11VENT TUBE
12SCREW
135304524341 Frigidaire Lens
14RETAINING WIRE
15HANGER
175303051516 Frigidaire Broil Element
18GRILLE, BROILER
195304442087 Frigidaire Range Wall Oven Broil Pan and Insert
20RACK (2)
215303051519 Frigidaire Oven 2600W Bake Element
2308002868 Frigidaire 0 Screw Assembly
24SCREW
25CHANNEL, OV. SUPT.
26WCI K1317644
27WCI KGM142017
28WCI K1325538
29BRACKET THERM. BULB
