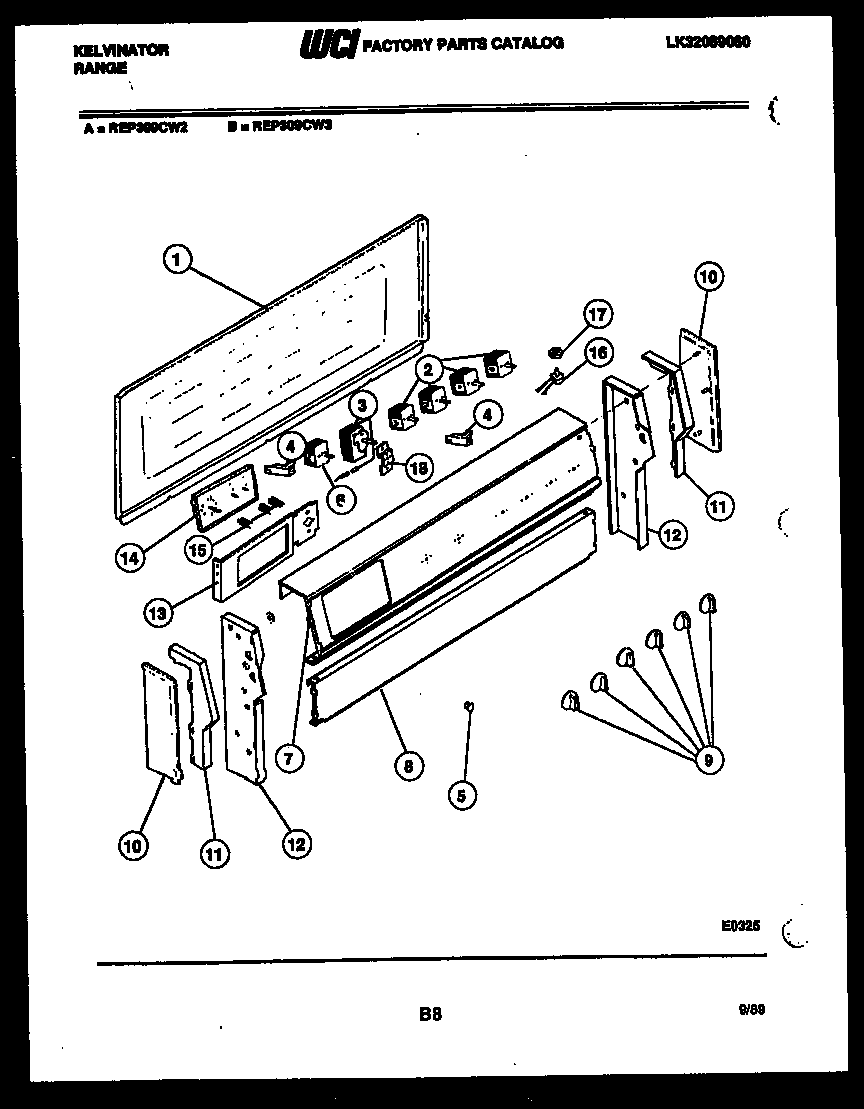

REP309CF3 02 – BACKGUARD PARTS

Products

Position	Product
1	COVER-WIRE, UPPER
2	5303935086 Frigidaire Oven Top Burner Switch Kit
2A	WCI K000131767
3	WCI 3934039
4	SIGNAL LIGHT-SURF UNIT
4A	SIGNAL LIGHT, OVEN
5	WCI K5139002
6	SWITCH-SELECTOR
7	WCI K5266702
8	PANEL BACKSPLASH, COFFEE
9	KNOB (6)
10	WCI 3051675
10A	WCI 3051674
11A	WCI 3051672
11	WCI 3051673
12	SUPPORT-BACKGRD LH
12	SUPT - BACKGUARD RH
13	BRACKET MOUNTING
14	WCI K5260601
15	WCI K1167946
16	SWITCH-OVEN LITE
16A	WCI 3205397
17	NUT-KNURLED
18	WCI K5267103
18	BRACKET-THERMO BULB (2)
