REP309CF3 05 – DOOR PARTS – Aparts

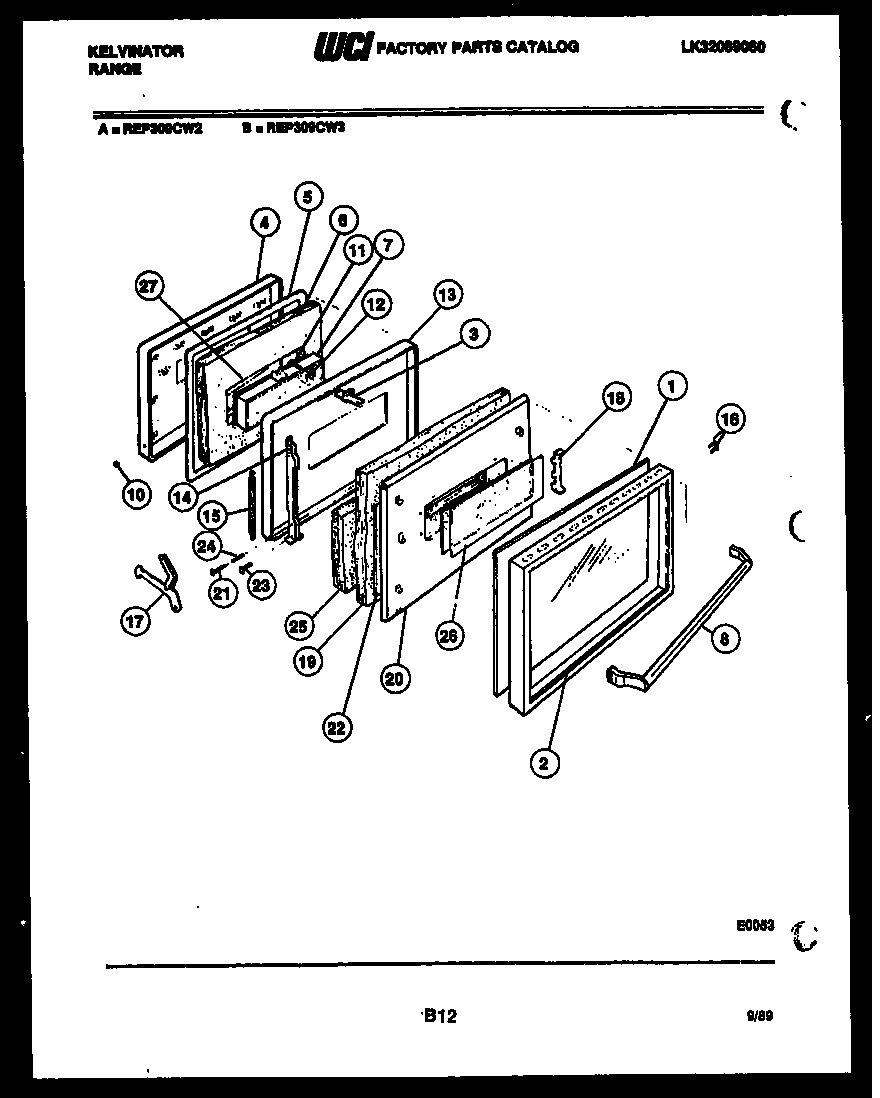

REP309CF3 05 – DOOR PARTS

Products

Position	Product
1	GLASS - OUTER
2	TRIM-FRAME
3	WCI K1167830
4	WCI 3017634
5	SEAL
6	WCI 3008673
7	WCI 3205235
8	WCI 3205317
10	BUTTON PLUG
11	WCI K1164550
12	WASHER, PADDED
13	DOOR LINER
14	WCI 3051822
15	WCI 08003186
16	SCREW
17	ARM ASSY.
18	WCI 3051714
19	WCI K1322652
20	WCI K5276901
21	WCI K1100733
22	WCI 08003175
23	WCI 08012004
24	WCI K1309794
25	WCI 3008677
26	BOTTOM REMOTE LITE SWITCH
27	WCI 3051706
