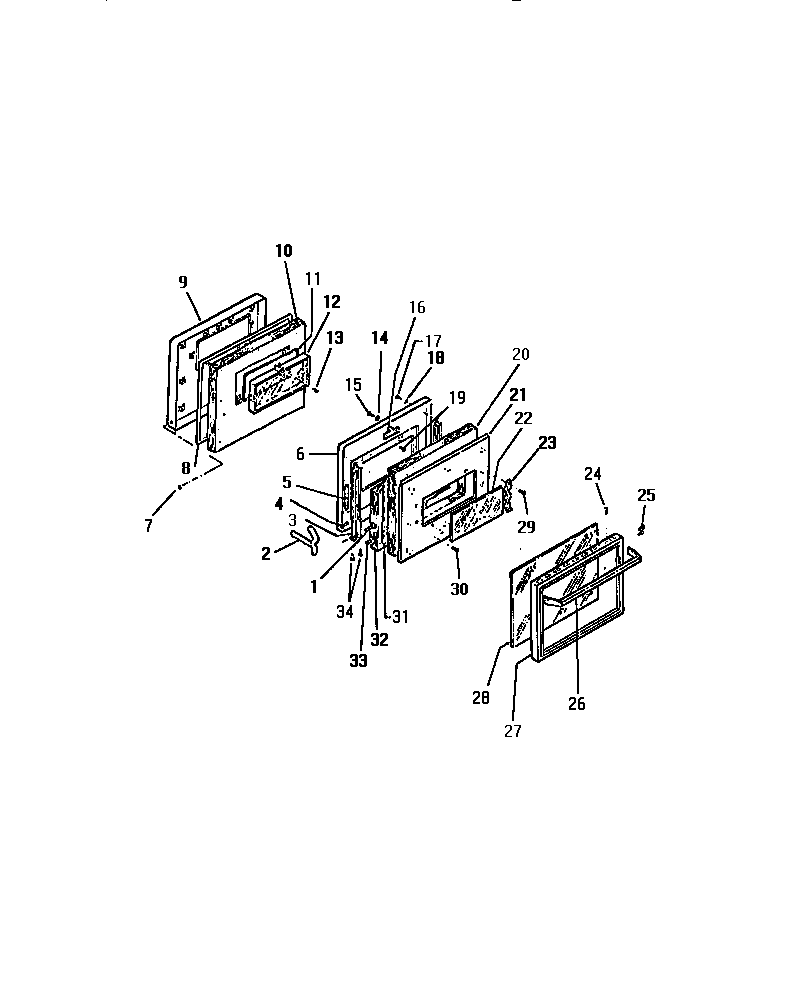

REP309CT0 04 – DOOR

Products

Position	Product
1	AXLE
2	WCI K5031803
3	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
4	RIVET
5	WCI K1302501
6	WCI K1324700
7	WCI KGM142001
8	GASKET
9	BAFFLE
10	WCI K1322622
11	WCI K1322069
12	WCI K1322068
16	STRIKE ASSEMBLY
18	WASHER, PADDED
20	WCI K1322652
21	WCI K5276901
22	WCI K1317924
23	RETAINER, GLASS (2)
24	WCI K1164550
25	SCREW
26B	WCI K5026807
26	HANDLE ASSY (INCLUDES STANCHION)
26A	STANCHION-HANDLE (2)
27	FRAME – CHROME OVEN DOOR
28	WCI K5027201
30	08002868 Frigidaire 0 Screw Assembly
31	WCI K1318825
32	WCI K1322651
33	WCI K1309794
34	WCI K1164285
