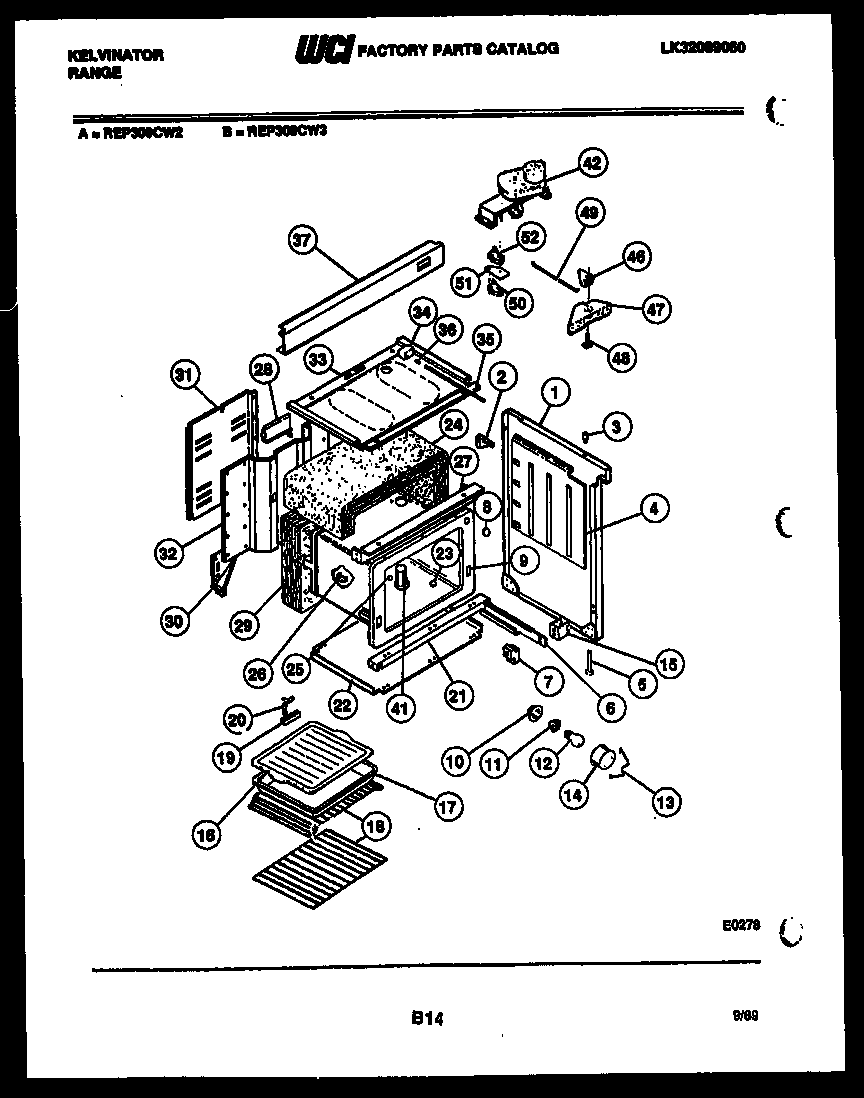

REP309CV2 06 – BODY PARTS

Products

Position	Product
1	WCI 3017479
1	WCI K5024607
1A	WCI K5024608
2	GUSSET, BACKGRD (2)
2	WCI K1325098
3	WCI 08014202
3	BUMPER
4	RETAINER, INSULATION (2)
5	GUIDE – DRAWER (2)
5	LEG
6A	RAIL, DRAWER LH
6	WCI 08015746
7	GUIDE
9	WCI K1325538
10	CUP, OVEN LT
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINING WIRE
14	5304524341 Frigidaire Lens
15	SPACER, RAIL
16	GRILLE, BROILER
17	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
18	316067902 Frigidaire Oven Rack
18A	RACK-OFFSET
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	STRAP-GROUND
21	CHANNEL, OV. SUPT.
22	WCI 3017394
23	WCI 3051784
24	WCI K1311331
25	PLUG BUTTON – THERMO BULB HOLE
26	BRACKET THERM. BULB
27	WCI K1325636
28	WCI K5134501
29	INSULATION-OVEN BACK
30	WCI 3017482
30	WCI 3017481
31	COVER – WIRE
32	WCI 3017535
33	WCI 08012542
33A	WASHER, PADDED
34	SWITCH – DOOR
35	WCI K1322683
36	WCI 08007444
37	WCI 3017633
41	TUBE-OVEN VENT
42	MOTOR-LATCH
46	LATCH-DOOR
47	HOUSING-DOOR LATCH
48	AXLE
49	WCI K5271201
50	SWITCH-LOWER
51	INSULATOR
52	WCI K1167190
