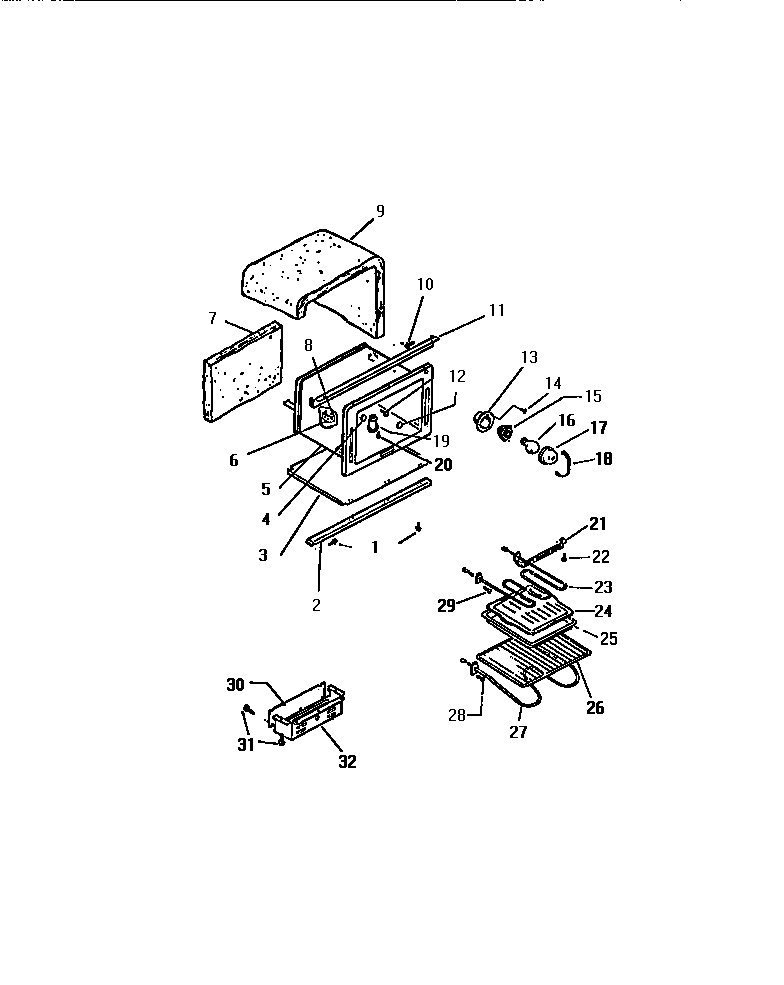

REP309CW0 05 – OVEN CAVITY

Products

Position	Product
*48520	WCI K5133501
*48521	WCI K5011207
1	SCREW
2	CHANNEL, OV. SUPT.
3	WCI K1317644
4	WCI KGM142017
5	WCI K1325538
6	BRACKET THERM. BULB
7	INSULATION-OVEN BACK
10	WCI K1311331
11	WCI K1325636
12	PLUG-BUTTON 3/4``
13	CUP, OVEN LT
15	316116400 Frigidaire Oven Light Socket
16	WCI K1186196
17	5304524341 Frigidaire Lens
18	RETAINING WIRE
19	WCI K5055002
20	SCREW
21	HANGER
23	5303051516 Frigidaire Broil Element
24	GRILLE, BROILER
25	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
26	RACK (2)
27	5303051519 Frigidaire Oven 2600W Bake Element
29	08002868 Frigidaire 0 Screw Assembly
30	WCI K1303601
32	WCI K1315121
