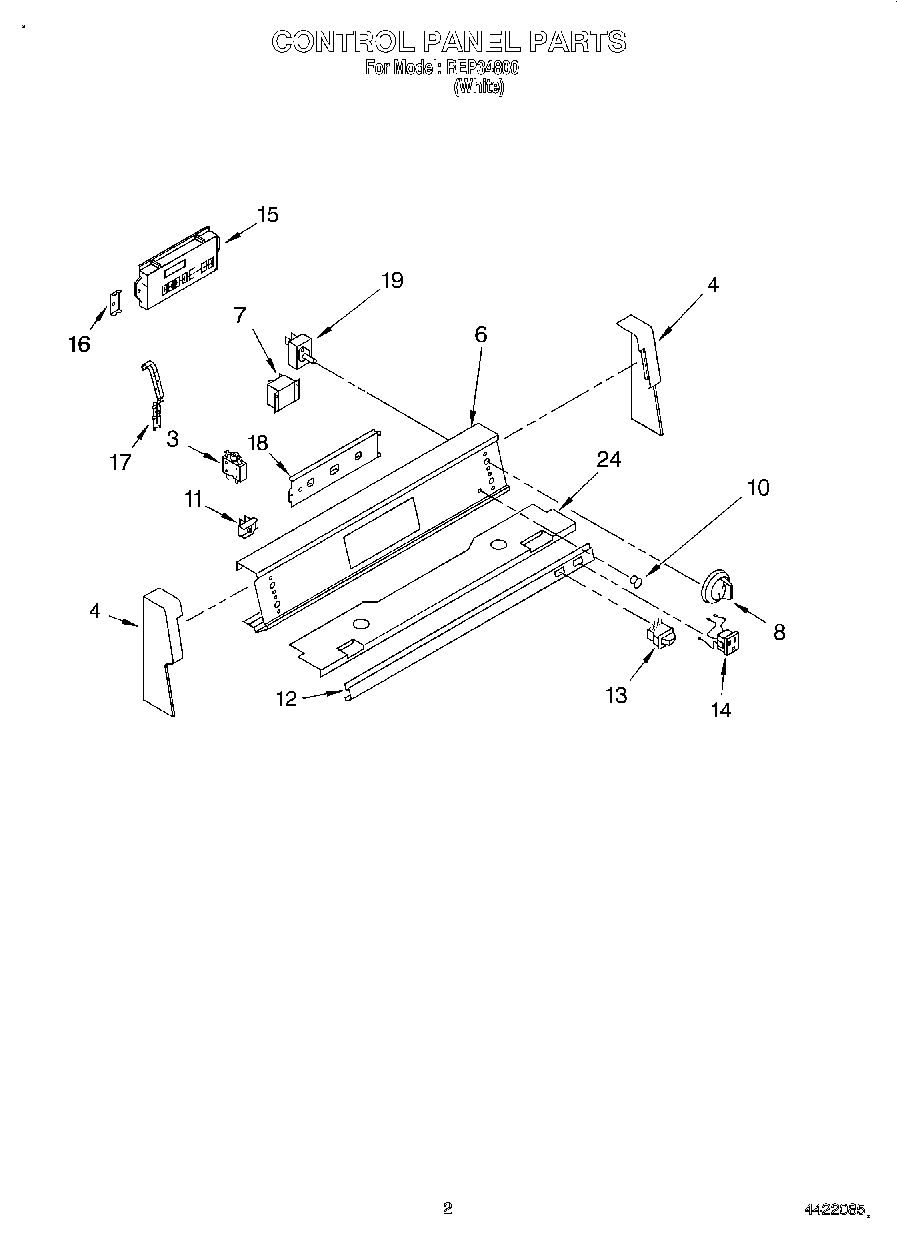

REP34800 02 – CONTROL PANEL

Products

PositionProduct
3Breaker, 15 Amp
4End Cap (Left)
4End Cap (Right)
6Panel, Control (Screw, (2) 8 x 3/8)
6Panel, Control
7WP9752759 Whirlpool Relay
8Knobs, Control (5)
10WP9750343 Whirlpool Light Lens
11Light, Indicator (Surface Unit (2))
12Trim Strip
13Switch, Oven Light
14Outlet, Untimed
15Timer
15Screw (4) 10 x 1/2
16Spacer – CT150
17Bracket, Timer
18Support. Relay
19WP9750641 Whirlpool Infinite Switch
19WP9750638 Whirlpool Infinite Switch
19WP3400882 Whirlpool Screw
24WP3400832 Whirlpool Screw
24WP4159387 Whirlpool Compactor Screw
24Base, Console
