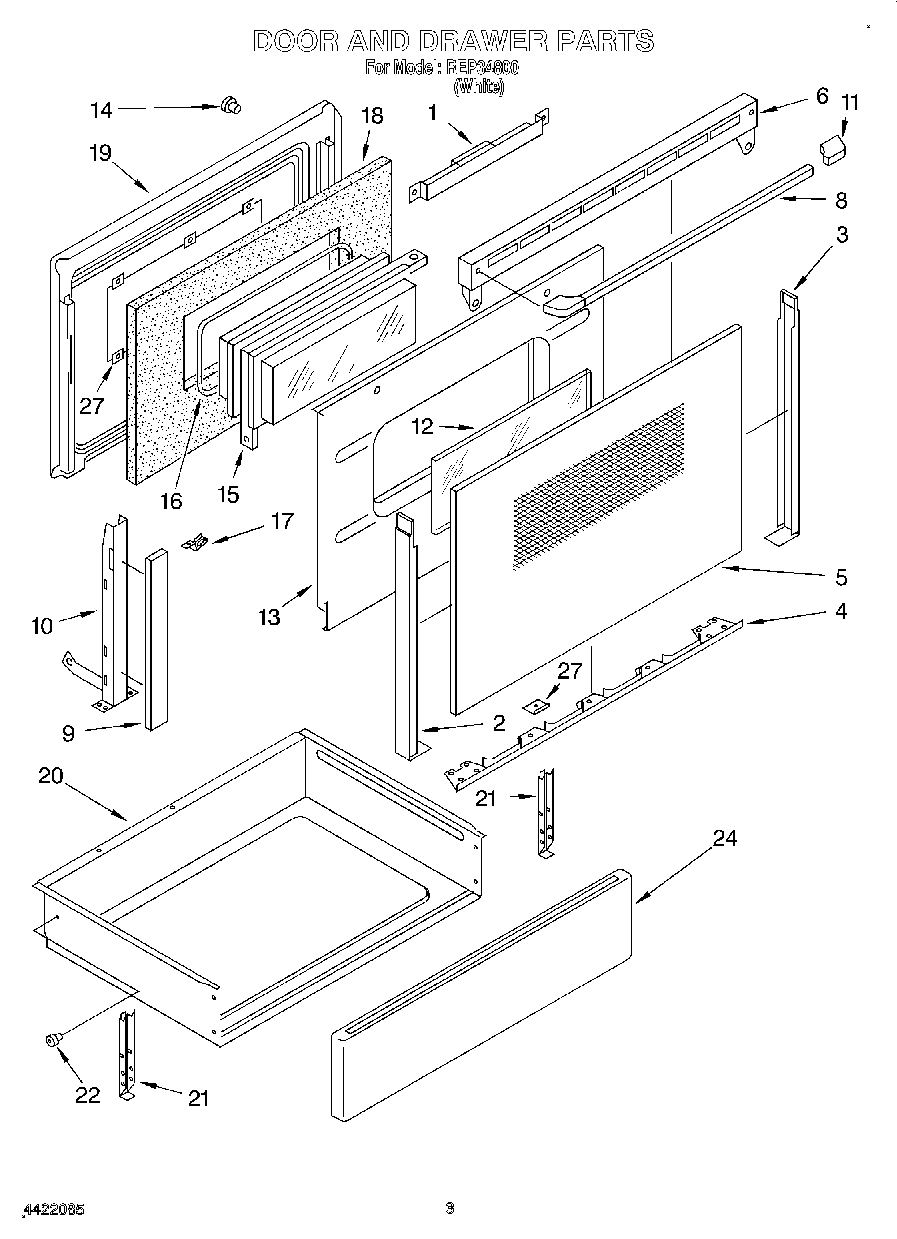

REP34800 03 – DOOR AND DRAWER

Products

Position	Product
1	Channel, Heat
2	Trim, Door-Left (White)
3	Trim, Door-Right (White)
4	Trim, Door Bottom (White)
5	Glass, Door Front
6	Vent, Door (White)
6	Vent, Door (Seal, Door Vent Side)
6	Vent, Door (Gasket, Vent)
8	Screw (2) 10 x 1 1/4
8	Handle, Door
9	Gasket, Door Glass
10	WP9782033 Whirlpool Door Hinge
11	End Cap, Handle (R or L)
11	screw (2) 10-24 x 5/8
12	Baffle, Glass
13	Shield, Door
14	238614 Whirlpool Bumper Hinge
15	Window Pack (2)
16	Seal, Window
17	Retainer, Glass
18	WPW10208653 Whirlpool Insulation
19	Liner, Door
20	Drawer & Roller
21	Bracket, Drawer
22	814229 Whirlpool Primary Roller
24	Front, Drawer (White)
24	Screw (4) 10 x 1/2
27	Spacer, Door (8)
27	WP4159387 Whirlpool Compactor Screw
