REP3622BL0 03 – SECTION

Products

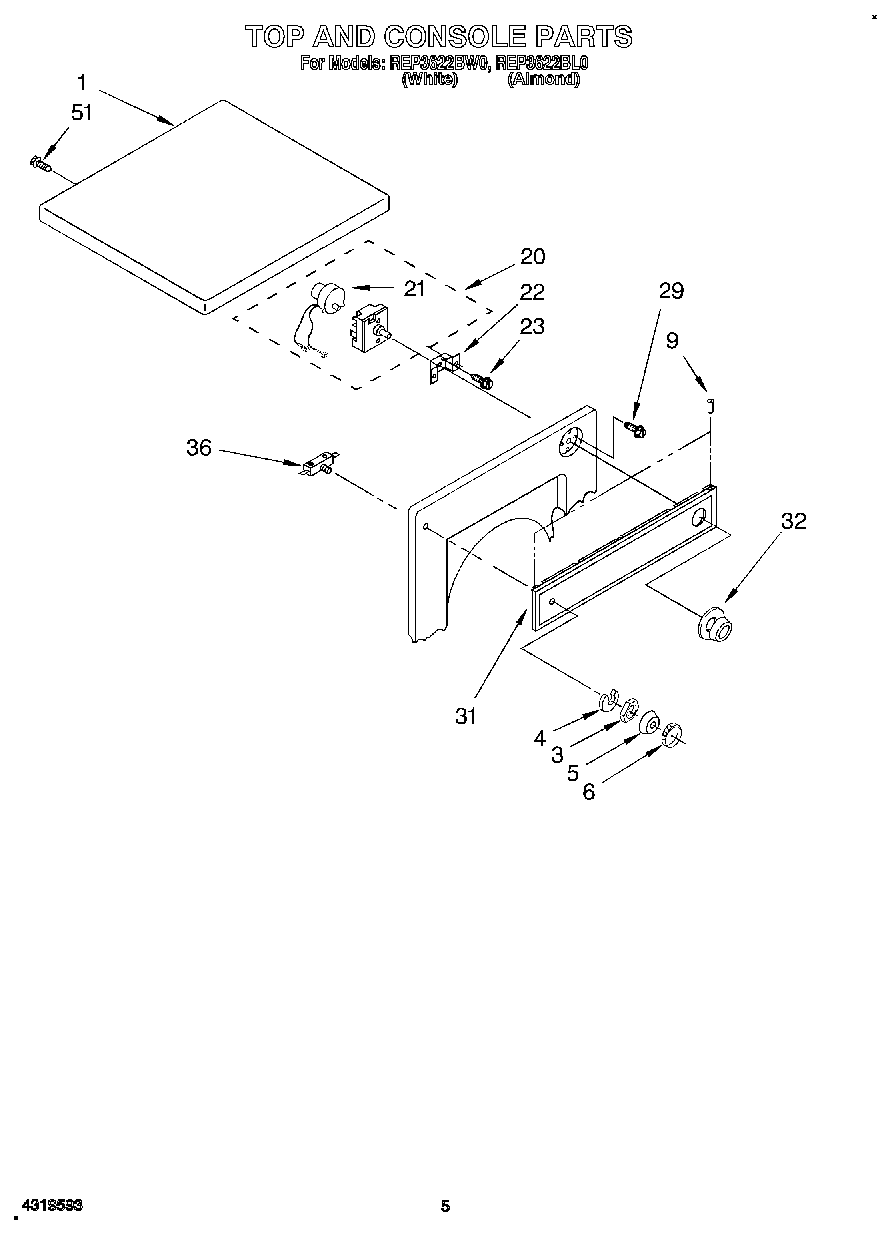

Position	Product
1	345703 Whirlpool White Maintop
1	Top (Almond)
3	Nut, Hex
4	Lockwasher
5	Ring, Trim
6	Nut, Knurled
9	Rivet, Plastic (4)
20	WP8563881 Whirlpool Timer
21	(Timer Motor Not Serviceable)
22	348171 Whirlpool Bracket
23	303776 Whirlpool Dishwasher Screw
29	WPW10139210 Whirlpool Screw
31	Panel, Control
32	Timer Knob & Dial
36	Switch, Push-To-Start
51	SCREW
