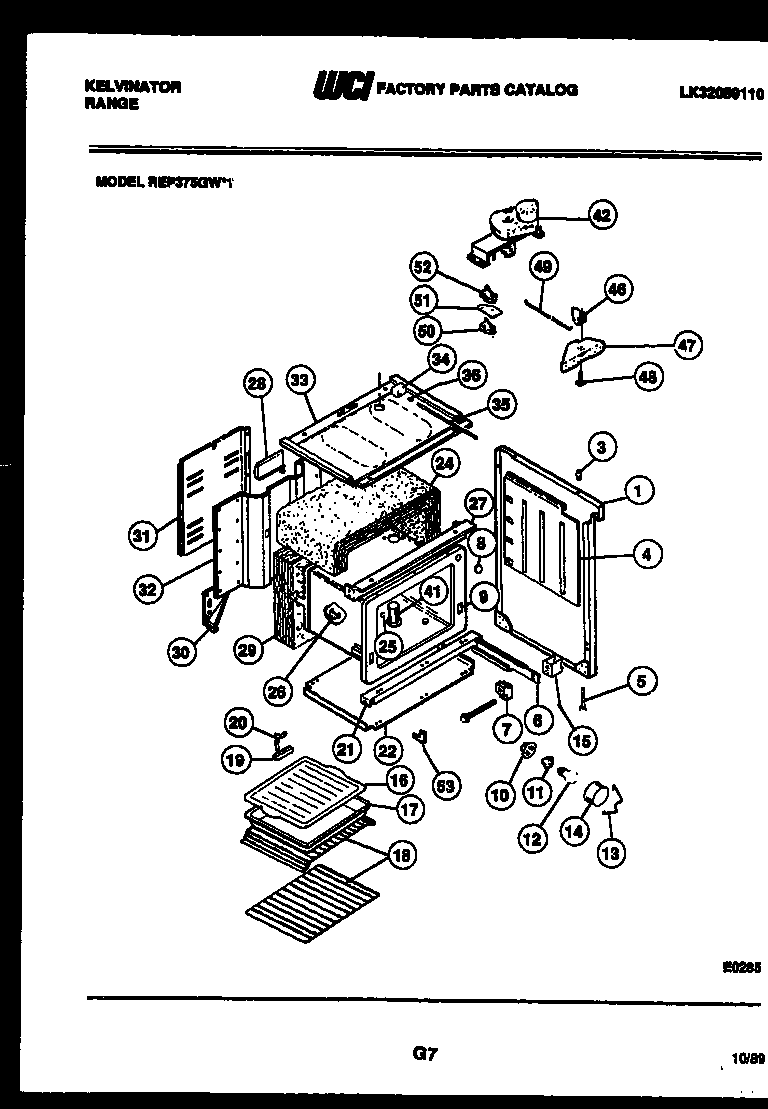

REP375GD1 06 – BODY PARTS

Products

Position	Product
*81253	ANTI-TIP KIT, (NON-ILLUSTRATED)
1A	WCI 08012530
1	SIDE PNL - RH (ALMD)
3	BUMPER - COOKTOP (4)
4	RETAINER, INSULATION (2)
5	LEG, LEVELLER (4)
6	WCI 08015746
6A	RAIL, DRAWER LH
7	WCI 08003103
8	WCI 3051784
9	OVEN LINER
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINER - LENS
14	5304524341 Frigidaire Lens
15	WCI 08011055
16	WCI 3205234
17	WCI 3205232
18	316067902 Frigidaire Oven Rack
18A	RACK-OFFSET
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08003146
21	CHANNEL - OVEN SUPPORT LOWER
22	WCI 3203574
24	WCI 3051628
25	PLUG BUTTON - THERMO BULB HOLE
26	BRACKET-THERMO BULB (2)
27	WCI K1325636
28	WCI K5134501
29	INSULATION-OVEN BACK
30	WCI 3017481
30A	WCI 3017482
31	COVER - WIRE
32	WCI 3017535
33A	WCI 08002847
33	WCI 08012542
34	SWITCH - DOOR
35	ROD-SWITCH
36	WCI 08007444
41	TUBE-OVEN VENT
42	MOTOR-LATCH
46	LATCH-DOOR
47	HOUSING-DOOR LATCH
48	WCI 08003184
49	WCI 3051649
50	WCI 3007889
51	WCI 08003090
52	WCI 08003092
53	WCI 3051810
