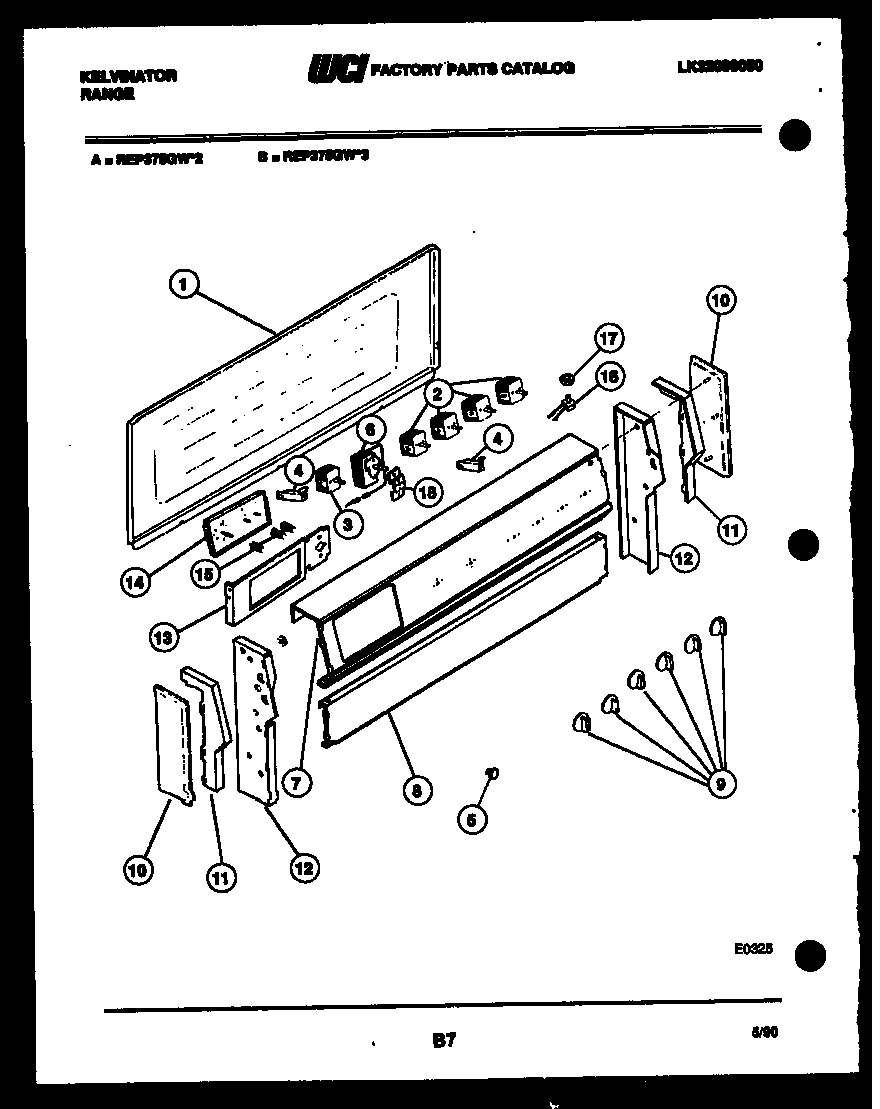

REP375GD3 02 – BACKGUARD PARTS

Products

Position	Product
*16765	WCI K1167966
1	COVER-WIRE, UPPER
2	5303935086 Frigidaire Oven Top Burner Switch Kit
3	THERMOSTAT
4	WCI 3051679
4	SIGNAL LIGHT-SURFACE UNIT AND CLEAN (2)
5	WCI K5139002
6	WCI 5308015771
7	WCI 5303209857
8	PANEL BACKSPLASH, ALMOND
9	KNOB-CONTROL (6)
10	WCI 3051675
10	WCI 3051674
11	WCI 3051672
11	WCI 3051673
12	WCI K5127702
12	SUPPORT-BACKGRD RH
13	BRACKET MOUNTING
14	WCI K5260501
15	KNOBS-CLOCK
16	5308015487 Frigidaire Switch-Oven Light
18	BRACKET-THERM MTG
