REP3822DW1 03 – SECTION

REP3822DW1 03 – SECTION

Written by

in

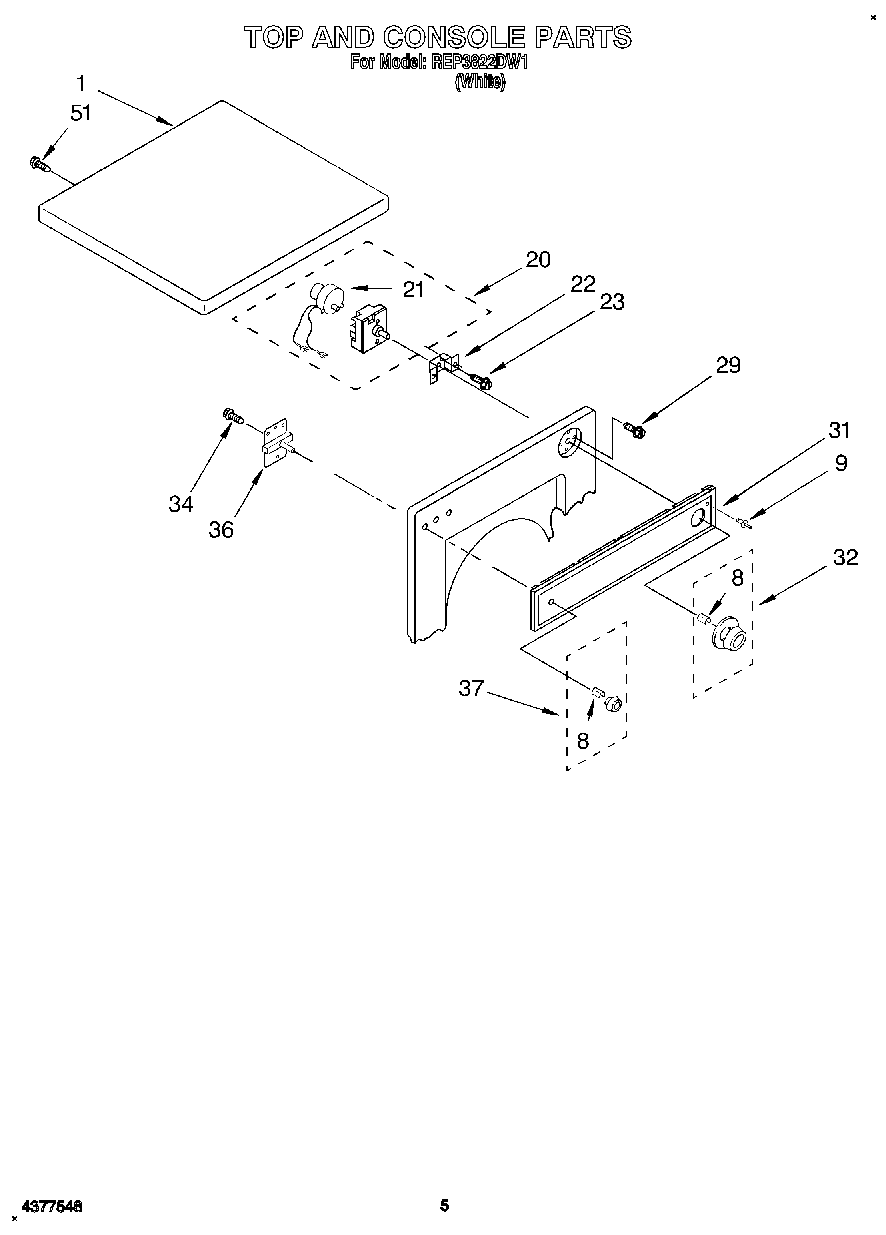

REP3822DW1 03 – SECTION

Products

PositionProduct
1345703 Whirlpool White Maintop
8WP688805 Whirlpool Spring Clip
9Rivet, Plastic (4)
20WP8563881 Whirlpool Timer
21(Timer Motor Not Serviceable)
22348171 Whirlpool Bracket
23303776 Whirlpool Dishwasher Screw
29WPW10139210 Whirlpool Screw
31Panel, Control
32Timer Knob & Dial
34WP3390631 Whirlpool Screw
36Switch, Push-To-Start
37Knob, Push-To-Start
51SCREW
