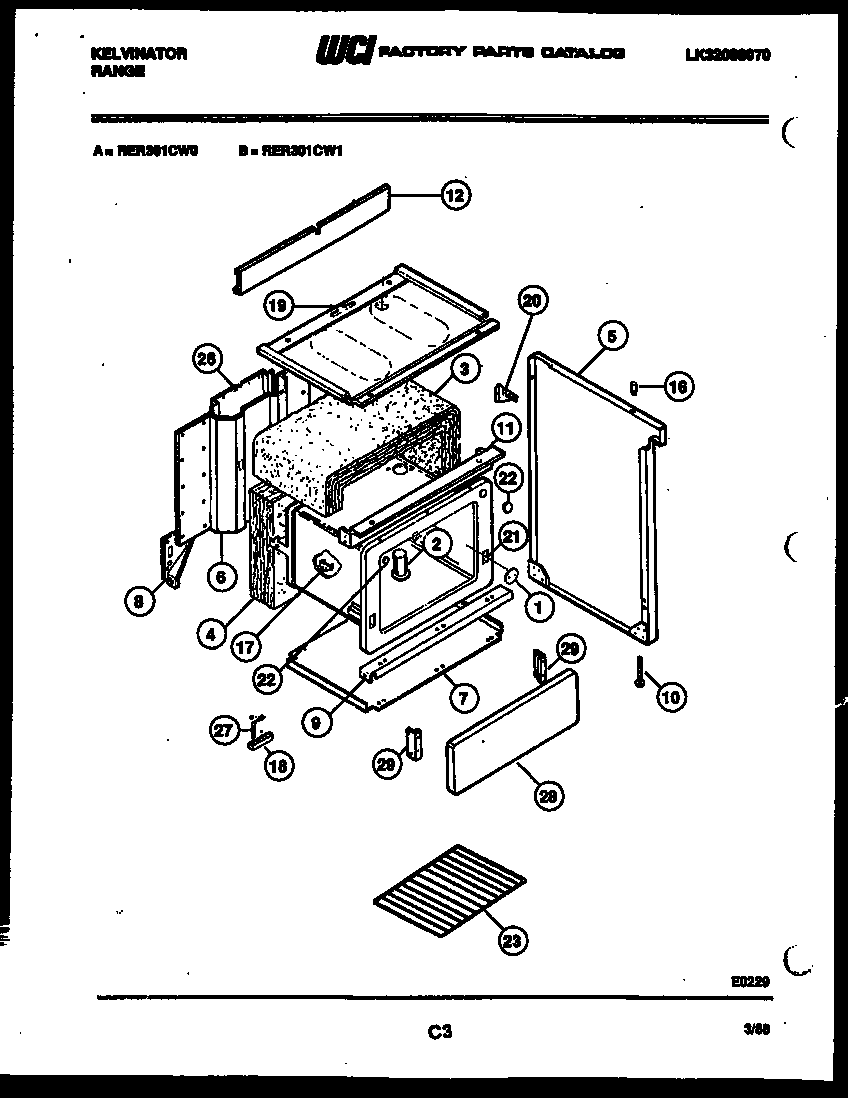

RER301CD0 06 – BODY

Products

Position	Product
1	WCI K1325524
2	VENT TUBE
3	INSULATION, WRAP
4	INSULATION – OVEN BACK
5	END PANEL, LH, ALMOND
5	END PANEL, RH, ALMOND
6	BACK
7	PANEL, BTM
8	GUSSET, RH
8	GUSSET REAR, LH
10	LEG
11	WCI K50099402
12	WCI K5287902
16	BUMPER
17	BRACKET – THRM BL (2)
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI K5025704
20	GUSSET, BACKGRD (2)
21	WCI K1325538
22	PLUG-BUTTON 3/4“
23	RACK (2)
26	COVER – WIRE
27	STRAP-GROUND
28	WCI K1322705
29	WCI K1310115
29	WCI K1310116
