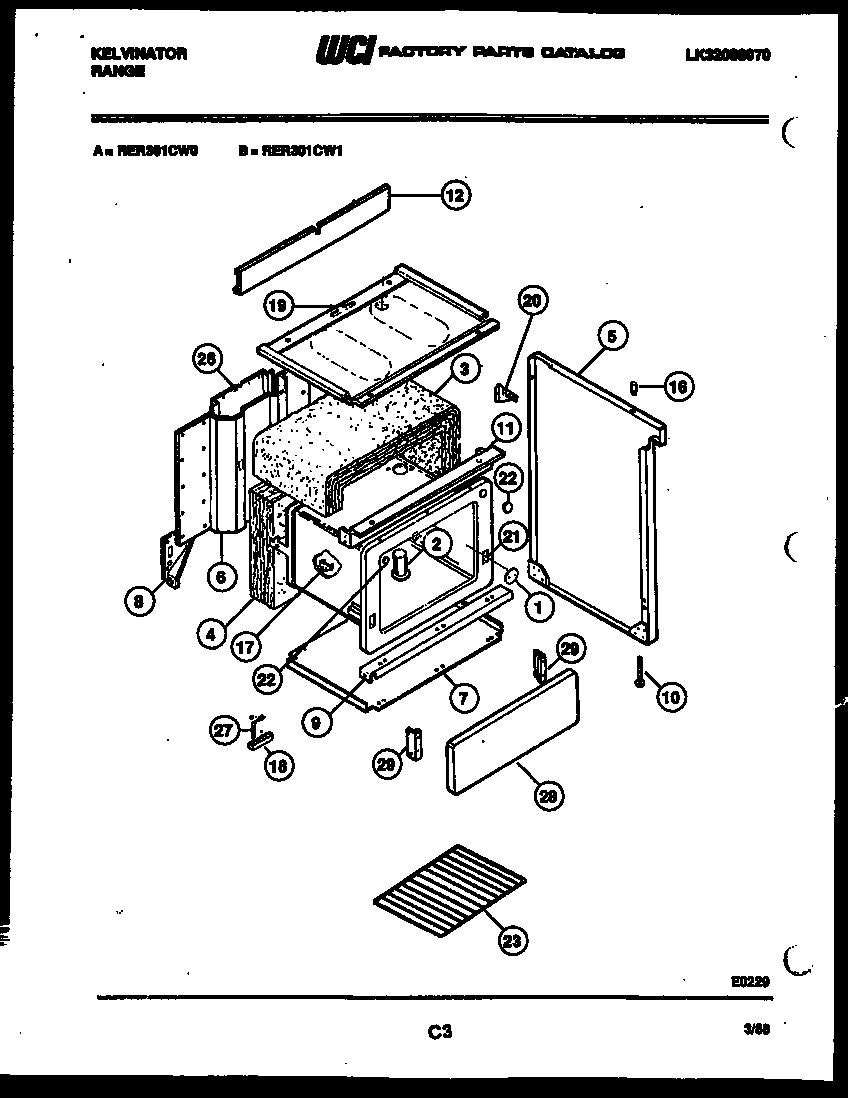

RER301CD1 06 – BODY

Products

PositionProduct
1WCI K1325524
2VENT TUBE
3INSULATION, WRAP
4INSULATION – OVEN BACK
5END PANEL, RH, ALMOND
5END PANEL, LH, ALMOND
6WCI 3017535
7WCI 3017394
8WCI 3017482
8WCI 3017481
9CHANNEL, OV. SUPT.
10LEG
11WCI K50099402
12WCI 3017633
16BUMPER
17BRACKET – THRM BL (2)
185304409888 Frigidaire Oven Terminal Block with Hardware
19WCI K5025704
20GUSSET, BACKGRD (2)
21WCI K1325538
22PLUG-BUTTON 3/4“
23316067902 Frigidaire Oven Rack
26COVER – WIRE
27STRAP-GROUND
28WCI K1322705
29WCI K1310115
29WCI K1310116
