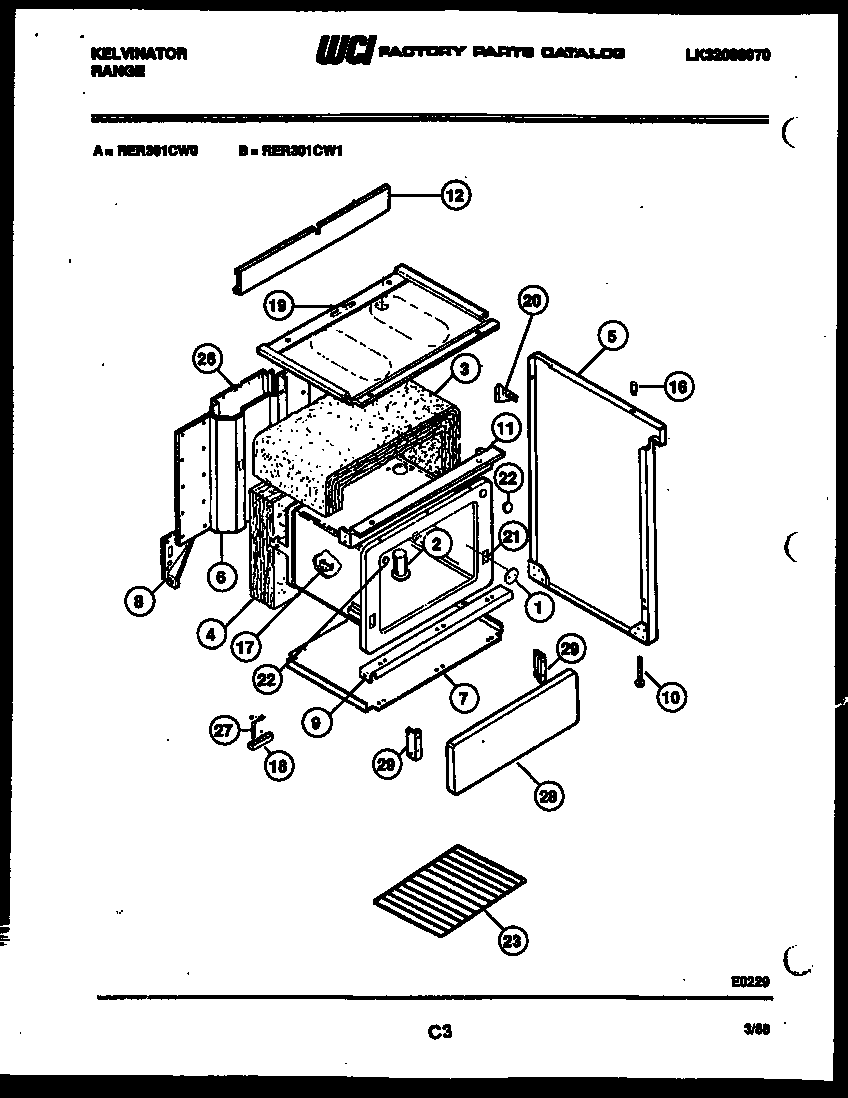

RER301CW1 06 – BODY

Products

Position	Product
1	WCI K1325524
2	VENT TUBE
3	INSULATION, WRAP
4	INSULATION – OVEN BACK
5	WCI K5024602
5	WCI K5024601
6	WCI 3017535
7	WCI 3017394
8	WCI 3017481
8	WCI 3017482
9	CHANNEL, OV. SUPT.
10	LEG
11	WCI K50099402
12	WCI 3017633
16	BUMPER
17	BRACKET – THRM BL (2)
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI K5025704
20	GUSSET, BACKGRD (2)
21	WCI K1325538
22	PLUG-BUTTON 3/4“
23	316067902 Frigidaire Oven Rack
26	COVER – WIRE
27	STRAP-GROUND
28	WCI K1316086
29	WCI K1310115
29	WCI K1310116
