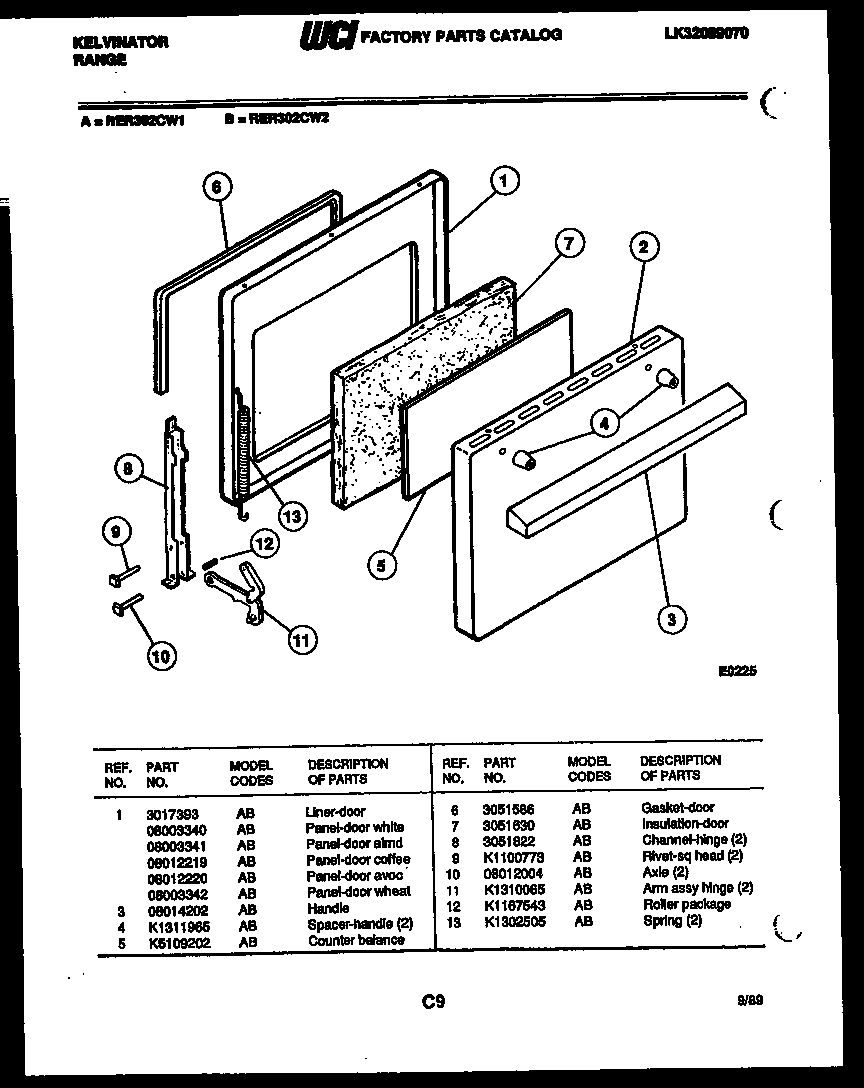

RER302CT1 05 – DOOR PARTS
Products
| Position | Product |
|---|---|
| 1A | WCI 08003342 |
| 1 | DOOR LINER |
| 3 | WCI 08014202 |
| 4 | SPACER (2) |
| 5 | WCI K5109202 |
| 6 | GASKET |
| 7 | INSULATION-OVEN BACK |
| 8 | WCI 3051822 |
| 9 | RIVET |
| 10 | WCI 08012004 |
| 11 | ARM ASSY. |
| 12 | WCI K1167543 |
| 13 | SPRING |
RER302CT1 05 – DOOR PARTS
| Position | Product |
|---|---|
| 1A | WCI 08003342 |
| 1 | DOOR LINER |
| 3 | WCI 08014202 |
| 4 | SPACER (2) |
| 5 | WCI K5109202 |
| 6 | GASKET |
| 7 | INSULATION-OVEN BACK |
| 8 | WCI 3051822 |
| 9 | RIVET |
| 10 | WCI 08012004 |
| 11 | ARM ASSY. |
| 12 | WCI K1167543 |
| 13 | SPRING |
