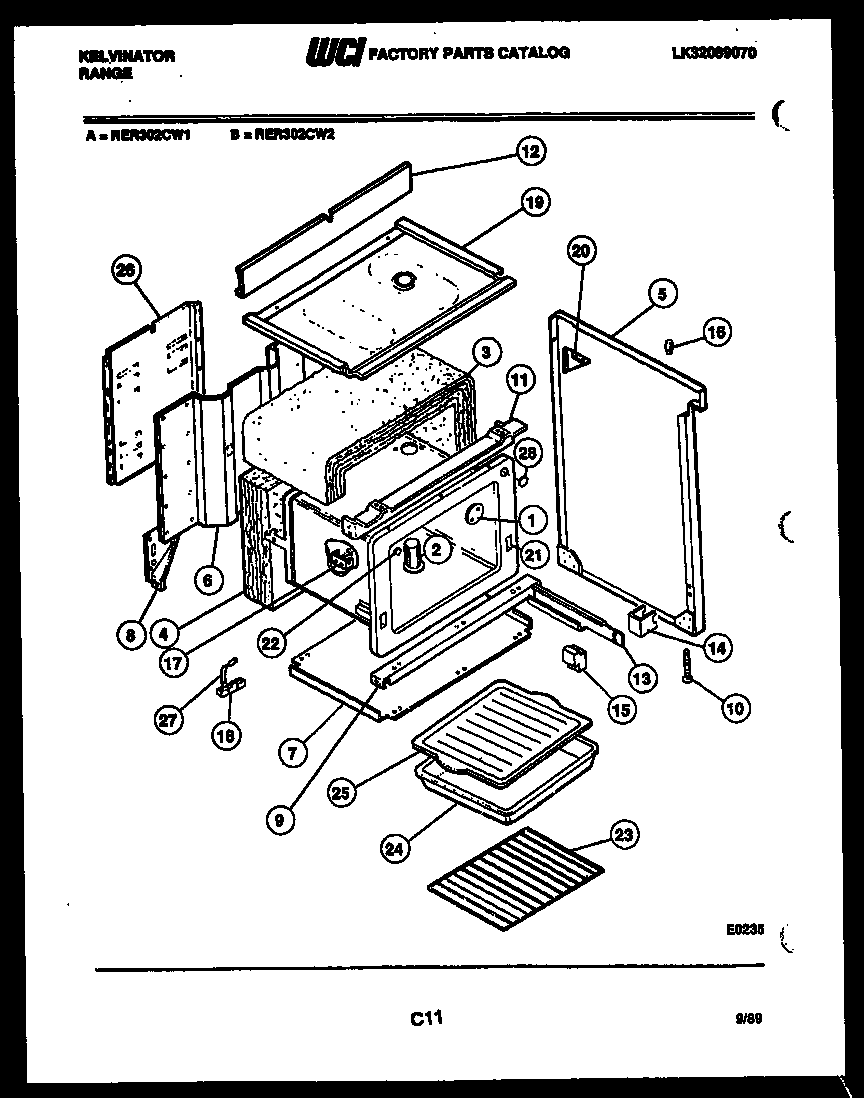

RER302CV2 07 – BODY PARTS

Products

Position	Product
*10351	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	WCI 3017576
2	WCI 08012541
3	INSULATION, WRAP
4	INSULATION, BACK
5	WCI K5024607
5A	WCI K5024608
6	WCI 3017535
7	WCI 3203574
8A	WCI 3017482
8	WCI 3017481
9	CHANNEL - OVEN SUPPORT LOWER
10	LEG, LEVELLER (4)
11	WCI 3200926
12	WCI 3017633
13A	RAIL, DRAWER LH
13	WCI 08015746
14	SPACER, RAIL
15	GUIDE
16	BUMPER
17	BRACKET THERM. BULB
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI 08012542
20	GUSSET, BACKGRD (2)
21	OVEN LINER
23	316067902 Frigidaire Oven Rack
24	WCI 3205232
25	WCI 3205234
26	COVER - WIRE
27	STRAP-GROUND
28	WCI 3051784
