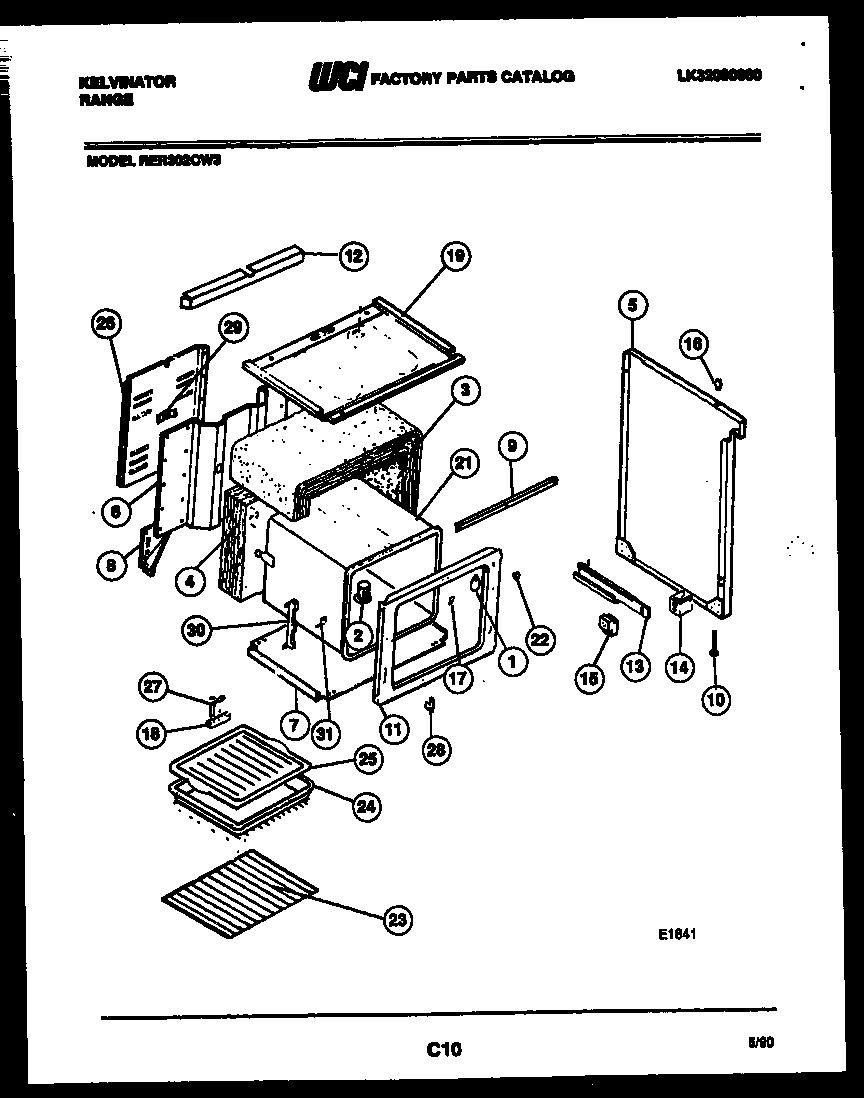

RER302CV3 07 – BODY PARTS

Products

Position	Product
*16858	WCI 5300009126
*16858	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	WCI 3017576
2	WCI 08012541
3	INSULATION - OVEN WRAP
4	INSULATION
5	WCI 08012534
5	WCI 08012533
6	PANEL-BACK
7	WCI 3206275
8	WCI 3017481
8	WCI 3017482
9	WCI 5303207391
10	LEG, LEVELLER (4)
11	WCI 5303207446
12	WCI 3205755
13	WCI 5308015746
13	RAIL, DRAWER LH
14	WCI 3201653
15	WCI 3201654
16	BUMPER, COOKTOP (4)
17	WCI 3202082
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI 08012542
21	BODY-OVEN
22	BUTTON-PLUG
23	316067902 Frigidaire Oven Rack
24	WCI 3205539
25	WCI 3205234
26	WIRE, COVER
27	PLATE=GROUND STRAP
28	WCI 3019063
29	WCI 3016281
30	WCI 3201631
31	WCI 3201632
