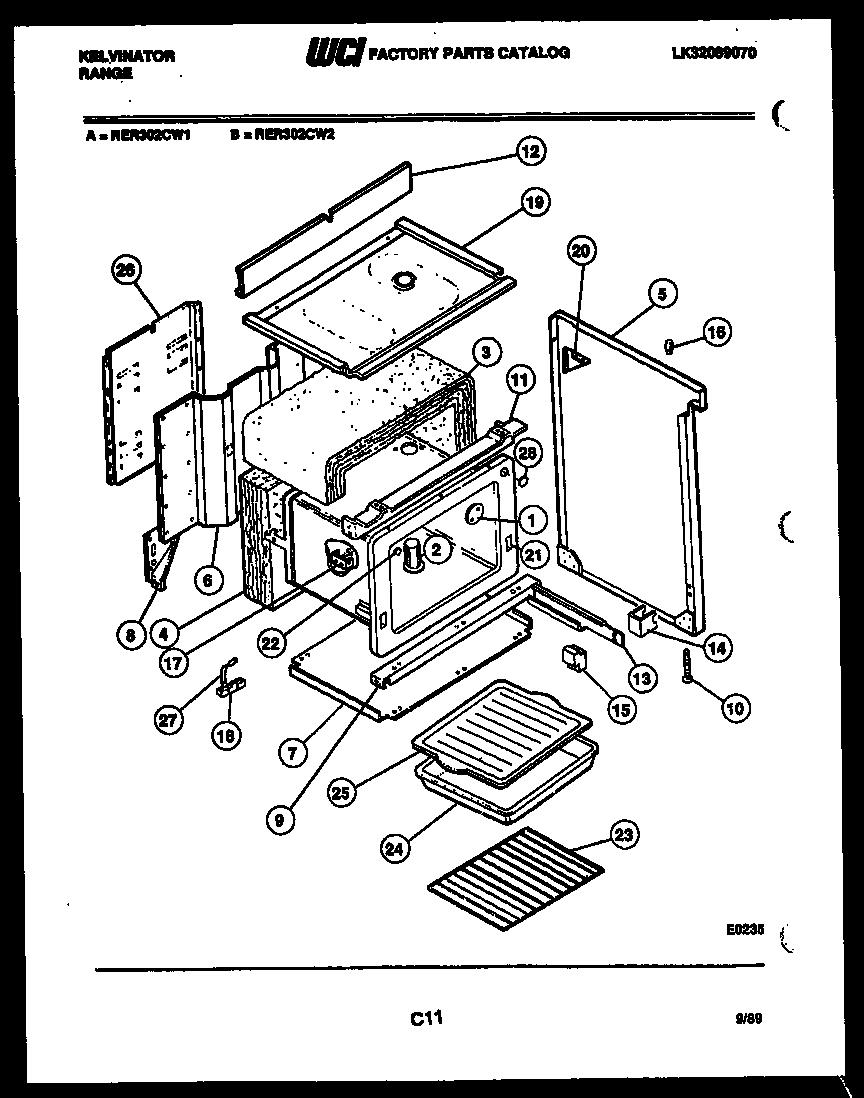

RER302CW1 07 – BODY PARTS

Products

Position	Product
1	WCI 3017576
2	WCI 08012541
3	INSULATION, WRAP
4	INSULATION, BACK
5	WCI K5024601
5A	WCI 08012528
6	WCI 3017535
7	WCI 3017394
8A	WCI 3017482
8	WCI 3017481
9	CHANNEL, OV. SUPT.
10	LEG
11	CHANNEL-OVEN SUPT
12	WCI 3017633
13	WCI 08015746
13A	RAIL, DRAWER LH
14	SPACER, RAIL
15	GUIDE
16	BUMPER
17	BRACKET THERM. BULB
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI 08012542
20	GUSSET, BACKGRD (2)
21	WCI K1325538
23	316067902 Frigidaire Oven Rack
24	WCI K1303482
25	WCI K1303481
26	COVER – WIRE
27	STRAP-GROUND
28	WCI 3051784
