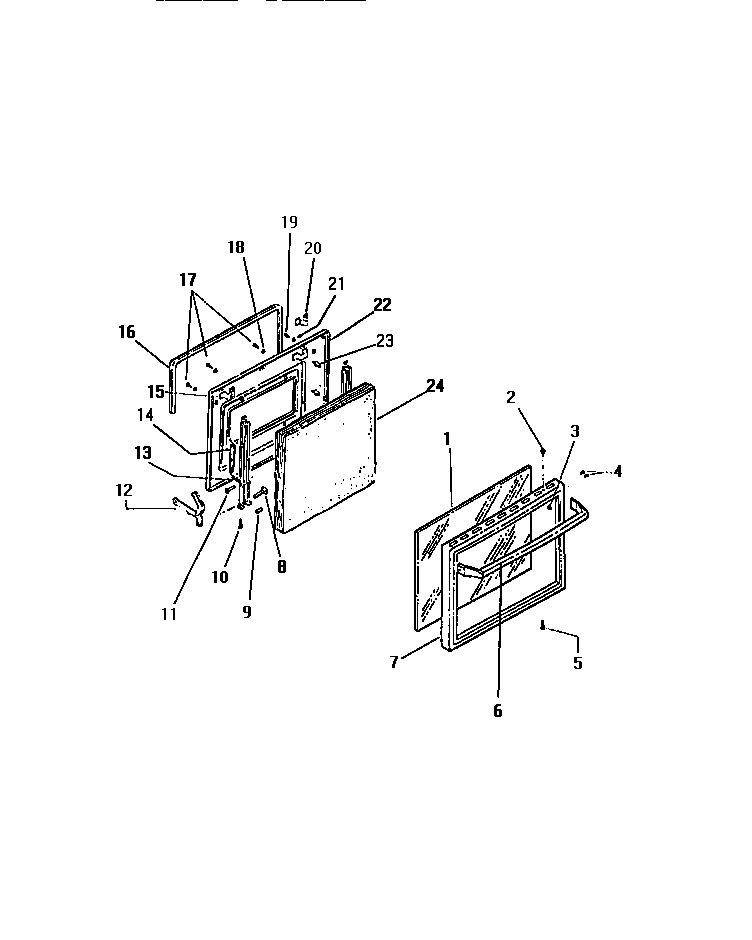

RER305CD0 04 – DOOR

Products

Position	Product
1	GLASS
3	5303013272 Frigidaire Oven Nut
4	SCREW
6 A	STANCHION-HANDLE (2)
6 B	HANDLE ASSY (INCLUDES STANCHION)
6	WCI K5026807
7	FRAME
8	AXLE
9	WCI K1309794
11	RIVET
12	ARM ASSY.
13	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
14	SPRING
15	SPACER (4)
16	GASKET (WITH CLIPS)
19	WCI K1164550
20	WCI K1309666
21	WASHER, PADDED
22	WCI K1323814
23A	BUMPER BTM
23	BUMPER TOP (2)
24	INSULATION
