RER305CD0 05 – OVEN CAVITY

RER305CD0 05 – OVEN CAVITY

Written by

in

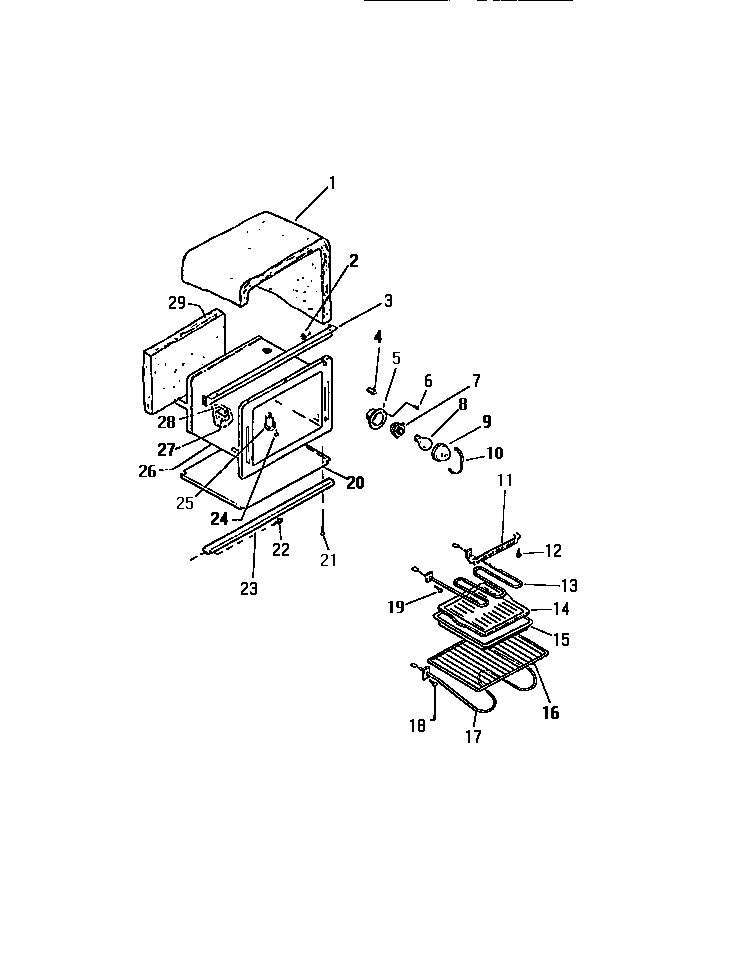

RER305CD0 05 – OVEN CAVITY

Products

PositionProduct
1INSULATION, WRAP
3CHANNEL-OVEN SUPT
4WCI K5294301
5CUP, OVEN LT
7316116400 Frigidaire Oven Light Socket
8316538904 Frigidaire Oven Lamp Light
95304524341 Frigidaire Lens
10RETAINING WIRE
11HANGER
135303051516 Frigidaire Broil Element
14GRILLE, BROILER
155304442087 Frigidaire Range Wall Oven Broil Pan and Insert
16RACK (2)
175303051519 Frigidaire Oven 2600W Bake Element
20WCI K1315107
22SCREW
23CHANNEL, OV. SUPT.
24SCREW
25VENT TUBE
26WCI K1325538
27BRACKET THERM. BULB
2808002868 Frigidaire 0 Screw Assembly
