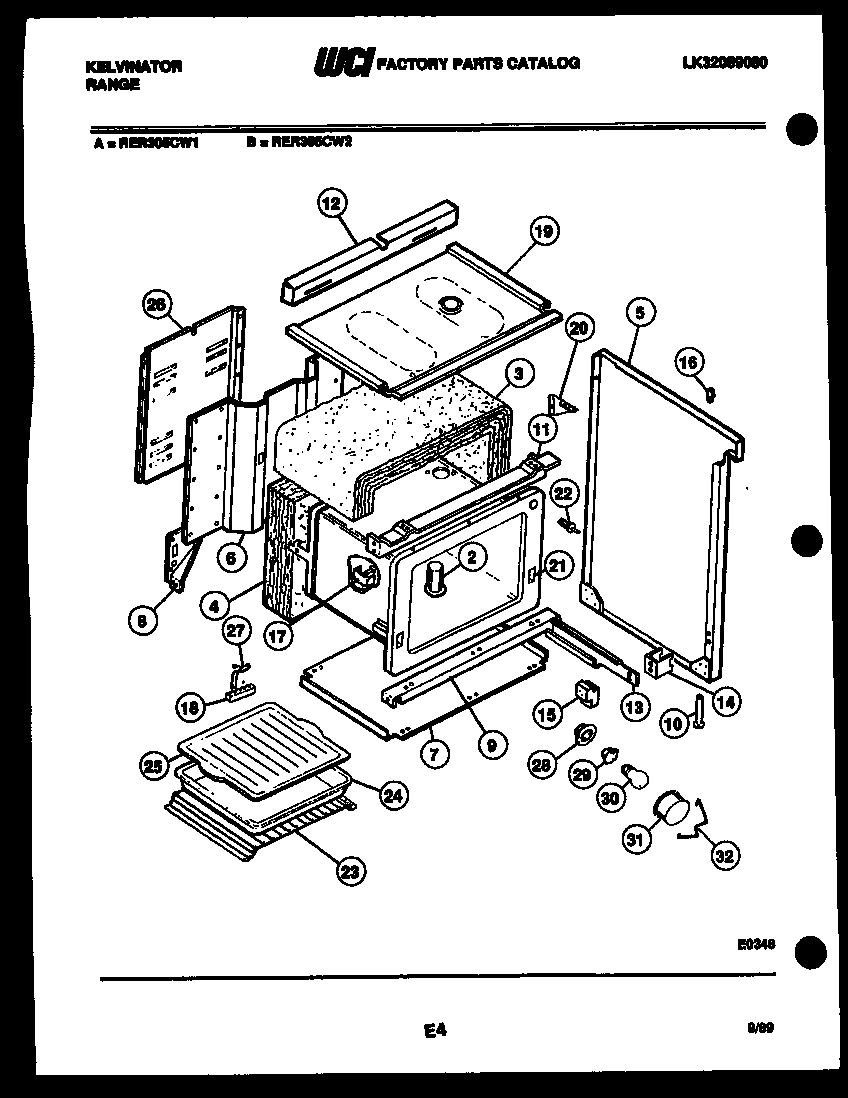

RER305CD1 07 – BODY PARTSadmin2025-04-26T11:50:53+00:00RER305CD1 07 – BODY PARTS
Products
| Position | Product |
|---|
| 2 | WCI 08012541 |
| 3 | INSULATION - OVEN WRAP |
| 4 | INSULATION-OVEN BACK |
| 5A | END PANEL, LH, ALMOND |
| 5 | END PANEL, RH, ALMOND |
| 6 | WCI 3017535 |
| 7 | PANEL-BOTTOM |
| 8 | WCI 3017481 |
| 8A | WCI 3017482 |
| 9 | CHANNEL, OV. SUPT. |
| 10 | LEG |
| 11 | CHANNEL-OVEN SUPT |
| 12 | WCI 3017633 |
| 13 | WCI 08015746 |
| 13A | RAIL, DRAWER LH |
| 14 | SPACER, RAIL |
| 15 | GUIDE |
| 16 | BUMPER |
| 17 | BRACKET THERM. BULB |
| 18 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 19 | WCI 08012542 |
| 20 | GUSSET, BACKGRD (2) |
| 21 | WCI K1325538 |
| 22 | WCI K5294301 |
| 23 | 316067902 Frigidaire Oven Rack |
| 24 | 5304442087 Frigidaire Range Wall Oven Broil Pan and Insert |
| 25 | GRILLE, BROILER |
| 26 | COVER - WIRE |
| 27 | STRAP-GROUND |
| 28 | CUP, OVEN LT |
| 29 | 316116400 Frigidaire Oven Light Socket |
| 30 | 316538904 Frigidaire Oven Lamp Light |
| 31 | 5304524341 Frigidaire Lens |
| 32 | RETAINING WIRE |
