RER305CF0 03 – TOP/DRAWER

RER305CF0 03 – TOP/DRAWER

Written by

in

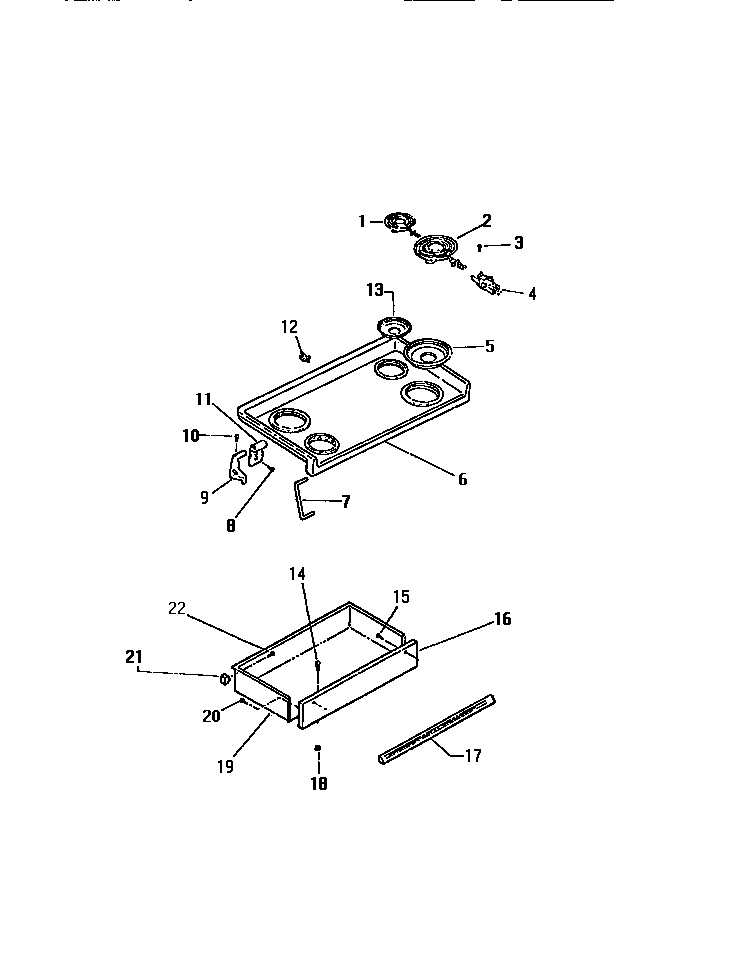

RER305CF0 03 – TOP/DRAWER

Products

PositionProduct
1318372210 Frigidaire Oven Range 6" 1250W Surface Element
25308011964 Frigidaire Surface Element P1
35308014215 Frigidaire Oven Screw
45303935058 Frigidaire Oven Burner Receptacle Kit
5316048413 Frigidaire Oven Range Chrome 8" Drip Bow
6WCI K5270109
7 BROD
7 ARETAINER
7SCREW
9WCI K1315631
1008002868 Frigidaire 0 Screw Assembly
11WCI K1315632
12WCI K1315541
13316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
16WCI K1325007
17HANDLE – DRAWER (CHROME)
185303013272 Frigidaire Oven Nut
19DRAWER
21GUIDE
22SCREW
