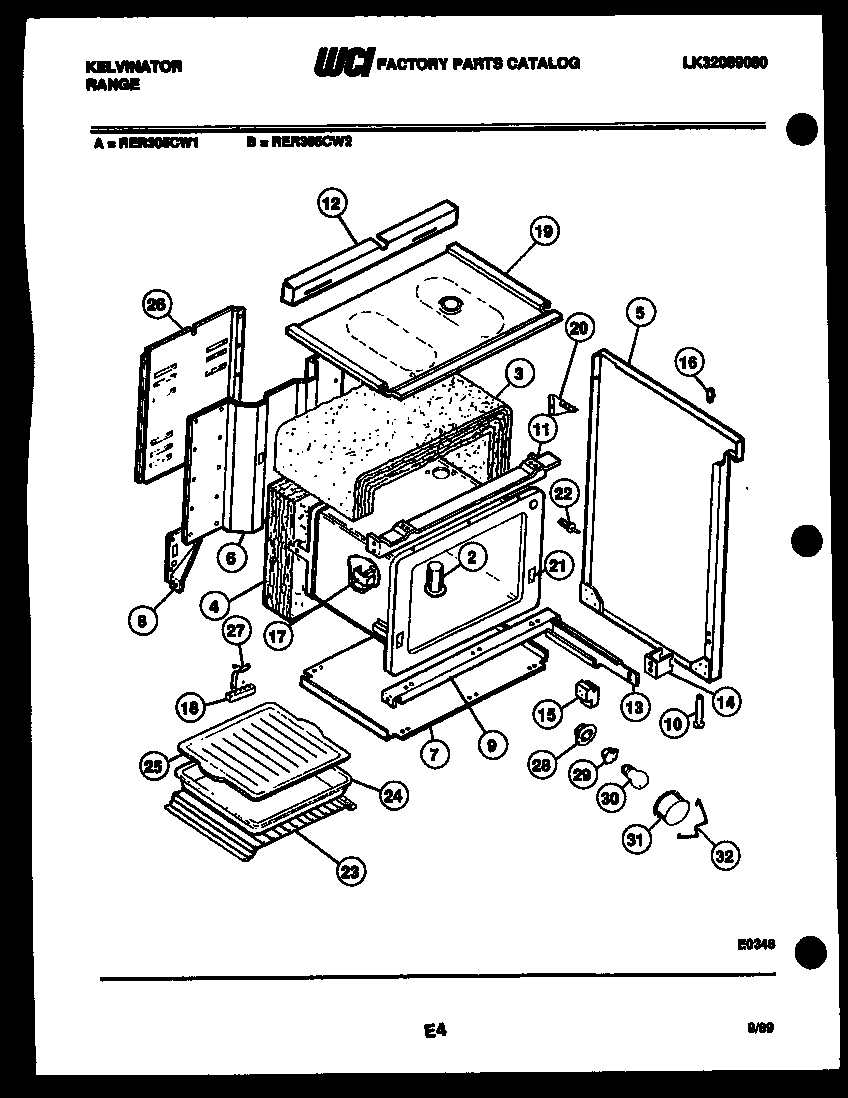

RER305CF1 07 – BODY PARTS

Products

Position	Product
2	WCI 08012541
3	INSULATION – OVEN WRAP
4	INSULATION-OVEN BACK
5A	WCI K5024606
5	WCI K5024605
6	WCI 3017535
7	PANEL-BOTTOM
8	WCI 3017481
8A	WCI 3017482
9	CHANNEL, OV. SUPT.
10	LEG
11	CHANNEL-OVEN SUPT
12	WCI 3017633
13A	RAIL, DRAWER LH
13	WCI 08015746
14	SPACER, RAIL
15	GUIDE
16	BUMPER
17	BRACKET THERM. BULB
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI 08012542
20	GUSSET, BACKGRD (2)
21	WCI K1325538
22	WCI K5294301
23	316067902 Frigidaire Oven Rack
24	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
25	GRILLE, BROILER
26	COVER – WIRE
27	STRAP-GROUND
28	CUP, OVEN LT
29	316116400 Frigidaire Oven Light Socket
30	316538904 Frigidaire Oven Lamp Light
31	5304524341 Frigidaire Lens
32	RETAINING WIRE
